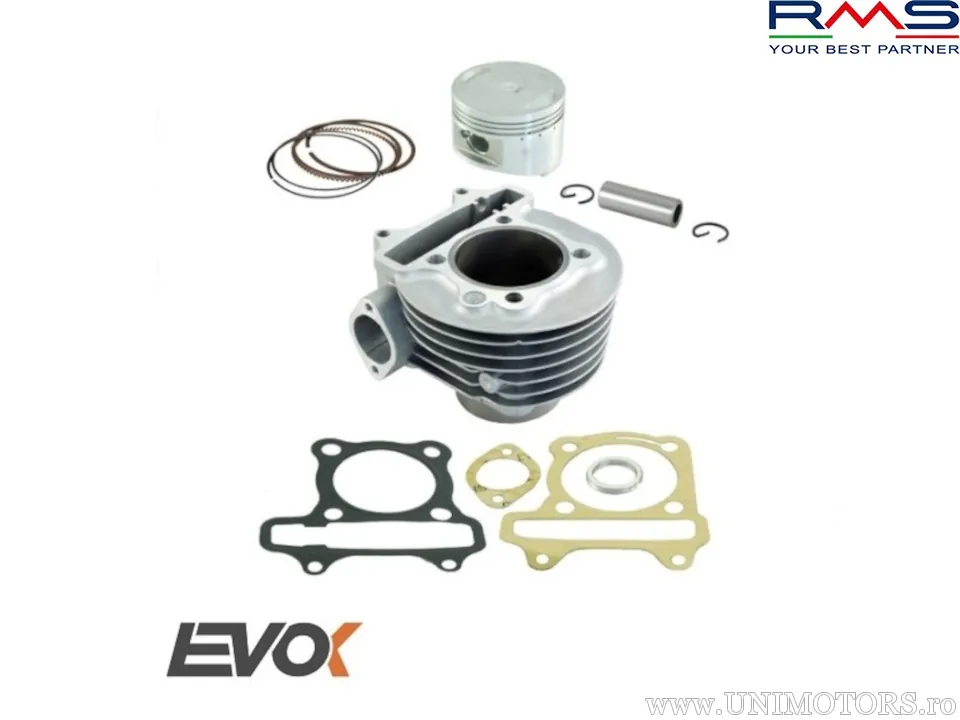

Motorzylinder-Set D57.40 Schraube 15 - Roller GY6-150 4T / China-Roller / Kymco Agility R16 ('04-) / Jonway 4T AC 150 - RMS

Set Zylinder Motor RMS. Zu den wichtigsten Anwendungen gehören: Benzhou 150cc: YY150T-2010 4T (2008-2010) / YY150-2012 (2008-2010) / YY150T-4 (2008-2010) / YY150T-6A (2009-2010) / YY150T-B (2008-2010) / China Scooter 150cc: JL149-6A (2008-2010) / JL149-6A 10-2011) / JL149-6C 10-2011) / JL149-8 (2008-2011) / JL149-9 (2009-2011) / YY150T-2012 (2008-2010) / YY150T-4 (2008-2010) / YY150T-6 (2008-2010) / YY150T-6A (2009-2010) / YY150T-B (2008-2010) / Jiajue 150cc: Ardour 4T (2009-2011) / Jinlun 150cc: JL149T-6 4T (2008-2011) / JL149T-6A (2010-2011) / JL49T-6C 4T (2010-2011) / JL149T-9 4T (2008-2011) / Jonway 150cc: Adventure/Eagle 4T (2009-2011) / Explorer 4T (2009-2011) / Grizzly 4T (2009-2011) / Raptor 4T (2009-2011) / Runner 4T (2009-2011) / Shark 4T (2009-2011) / Victoria 4T (2011) / Viper 4T (2009-2011) / Vista 4T (2009-2011) / Kymco 150cc: Agility 4T AC (2008-).

Äquivalent W-Standard: WS-0150-05-01;
Äquivalent RMS: 100080401;

Eigenschaften:
- RMS Premium-Variante (hochwertig);
- Hersteller: EVOK (für RMS).

Eigenschaften - Kolbenmaße:
- Kolbendurchmesser (D): 57,40 mm;
- Abstand Mittelbolzen - Kolbenkopf (C): 20 mm;
- Kappe (H): PFV;
- Gesamtlänge Kolben (L): 39,00 mm.

Eigenschaften - Bolzenmaße (d):
- Außendurchmesser Bolzen: 15 mm;
- Innendurchmesser Bolzen: 10 mm;
- Bolzenlänge: 42 mm.

Eigenschaften - Segmente:
- Anzahl Segmente: 3;
- Dicke Segmente:
- 2 Segmente 1,00 mm;
- 1 Segment 2,00 mm.
