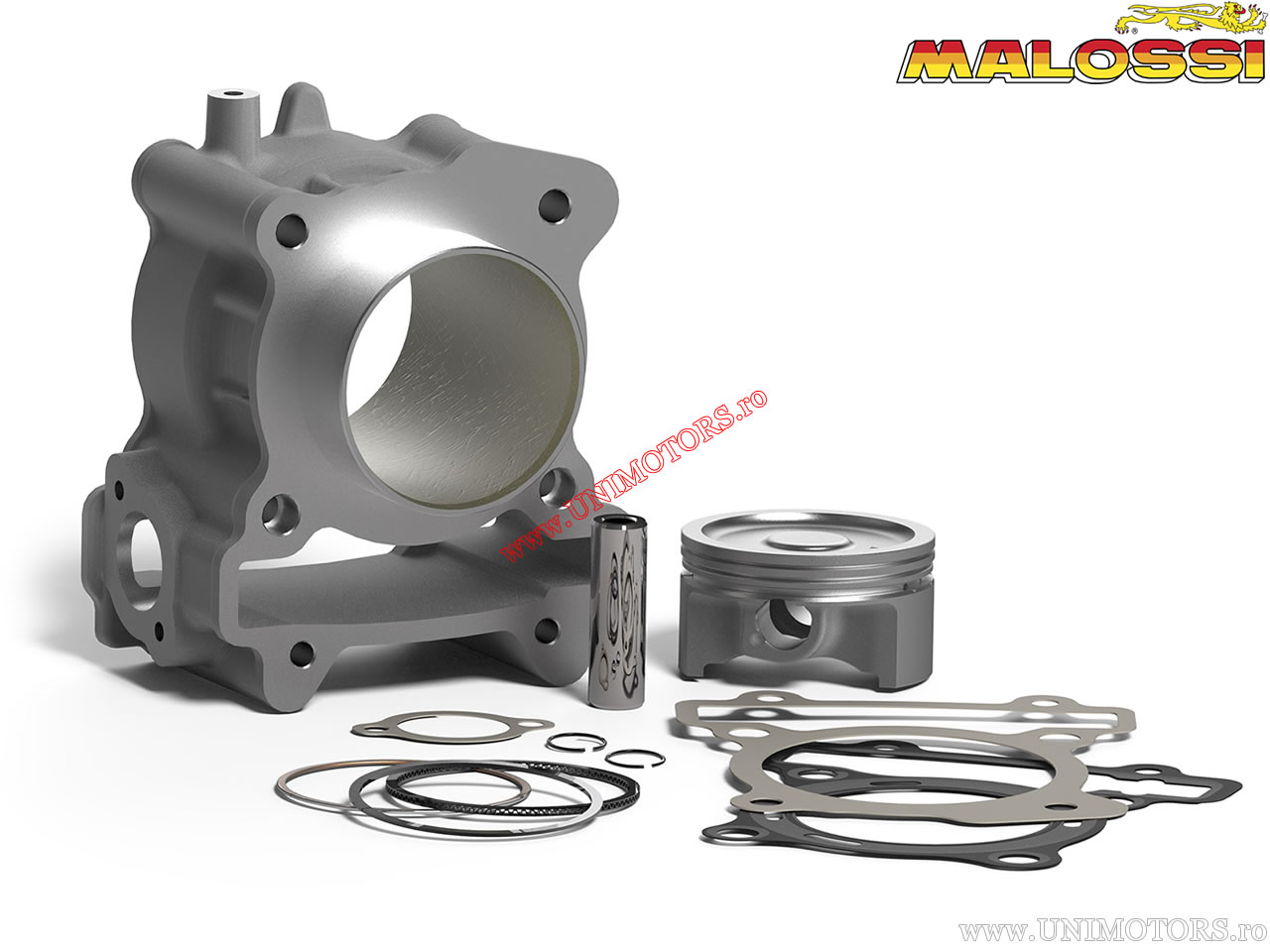

Aluminium complete cylinder I-Tech 4T (diameter 63mm / 3117968) - MBK Ocito ABS 125i H2O 4T E3 ('15-'16) - Malossi

Cylinder complete aluminum I-Tech 4T (63mm) Malossi. Among the most important applications are: MBK Ocito ABS 125i H2O 4T E3 (2015-2016) / Ocito ABS 125i H2O 4T E4 (2017-2018) / Yamaha N-Max ABS 125i H2O 4T E3 (2015-2016) / N-Max ABS 125i H2O 4T E4 (2017-2020) / N-Max ABS 155i H2O 4T E4 (2017-2020) / Tricity 155i H2O 4T E4 (2016-2020) / Yamaha YZF125R H2O 4T E4 (2019-2020).

To be installed exclusively with the Malossi Force Master 2 ECU control unit 5518095 for:
YAMAHA N MAX 125 ie 4T LC euro 3 <-2016 (E353E)
YAMAHA N MAX 125 ie 4T LC euro 4 2017->2020 (E3X7E)

To be installed exclusively with the Malossi Force Master 2 ECU control unit 5518172 for:
YAMAHA N MAX 155 ie 4T LC euro 4 <-2016
YAMAHA N MAX 155 ie 4T LC euro 4 2017->
YAMAHA NVX 155 ie 4T LC euro 4 2017->
YAMAHA TRICITY 155 ie 4T LC euro 4 2017-> (G3H3E)

To be installed exclusively with the Malossi Force Master 2 ECU control unit 5518417 for:
YAMAHA YZF-R 125 ie 4T LC euro 4 2019->2020

To be installed exclusively with the Malossi Force Master 2 ECU control unit 5519527 for:
YAMAHA N MAX 125 ie 4T LC euro 5 2021-> (E32TE)
YAMAHA X MAX 125 ie 4T LC euro 5 2021-> (E33FE)

To be installed exclusively with the Malossi Force Master 2 ECU control unit 5519265B for:
FANTIC CABALLERO DELUXE 125 ie 4T LC euro 5 2021->
FANTIC CABALLERO FLAT TRACK 125 ie 4T LC euro 5 2021->
FANTIC CABALLERO SCRAMBLER 125 ie 4T LC euro 5 2021->
FANTIC ENDURO XEF COMPETITION 125 ie 4T LC euro 5 2021->
FANTIC ENDURO XEF PERFORMANCE 125 ie 4T LC euro 5 2021->
FANTIC MOTARD XMF COMPETITION 125 ie 4T LC euro 5 2021->
FANTIC MOTARD XMF PERFORMANCE 125 ie 4T LC euro 5 2021->

To be installed exclusively with the Malossi Force Master 2 ECU control unit 5519283B for:
YAMAHA MT- 125 ie 4T LC euro 5 2021-> (E32FE)
YAMAHA XSR 125 ie 4T LC euro 5 2022->

- Cylinder for liquid-cooled engine;
- Material made from high-silicon primary aluminum alloy;
- Cylindrical sleeve with silicon carbide coating;
- Machined on high-precision CNC machines;
- Cylinder-piston connection with a clearance of 0.05 mm;
- Heat exchange surfaces recalculated and modernized;
- Ultra compact piston with 3 rings;
- Piston made from special high-silicon aluminum alloy;
- Machined on CNC machines;
- Improved heat exchange surfaces;
- Piston rings: compression ring (nitrided steel), special ring (cast iron) and 3-piece oil control ring - steel;
- Does not include cylinder head;
- Bore: 63 mm;
- Piston pin diameter: 14 mm;
- Stroke: 58.7 mm;
- Class: Sport;

Products reserved exclusively for competitions in designated areas in accordance with the regulations of the competent sports authorities. We disclaim any responsibility for improper use.
