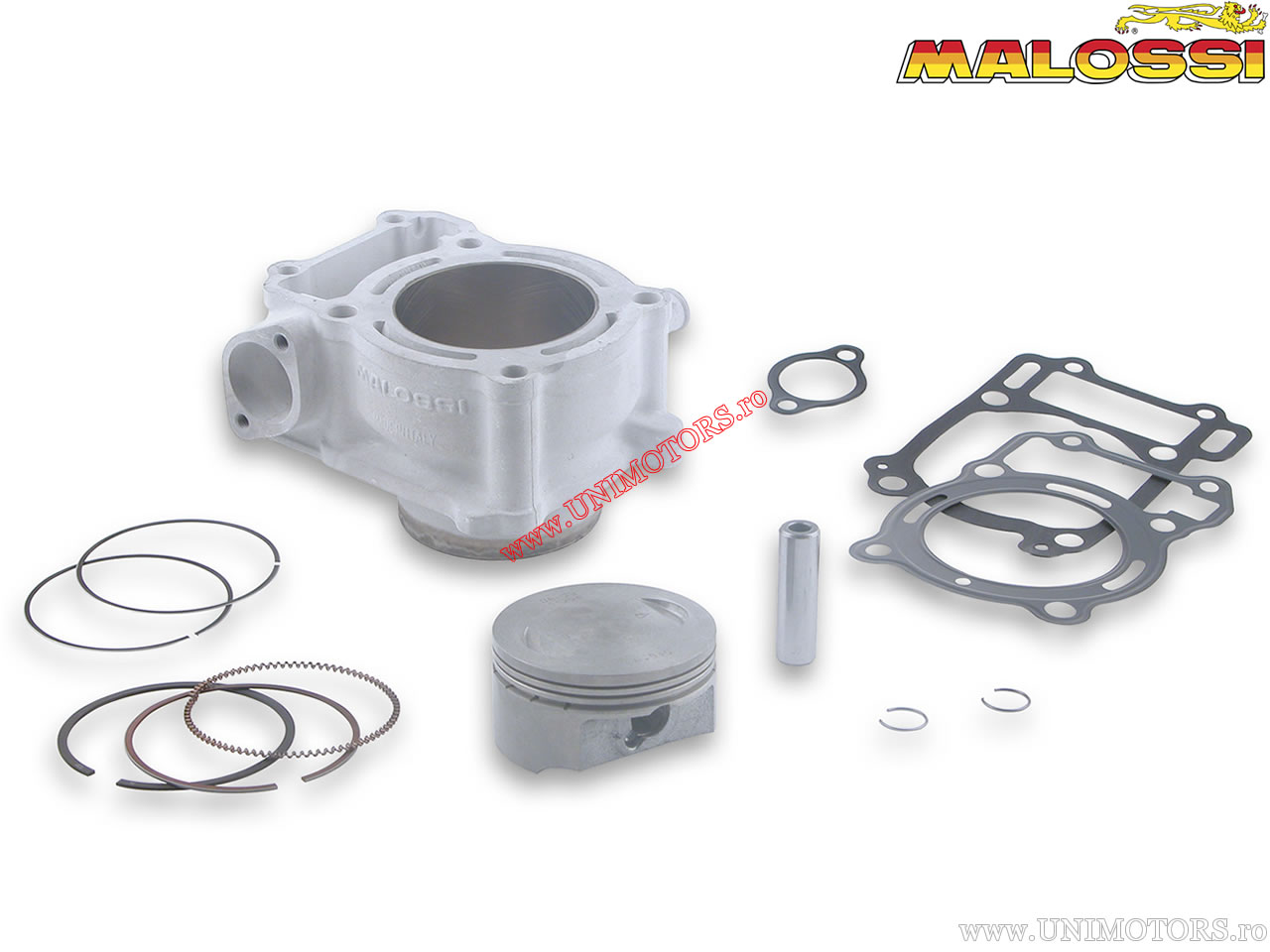

Cylinder aluminum 4T (67mm) Malossi. Among the most important applications are: Honda CBR 125 H2O 4T E2 (2004-2006) / CBR 125i H2O 4T E3 (2007-2010) / CBR 125i H2O 4T E4 (2018-2020).
- Cylinder for liquid-cooled engine;
- Cylinder made of primary aluminum alloy with a high silicon content;
- Cylinder sleeve with silicon carbide coating in a galvanic nickel;
- Machined on high-precision numerical control machine tools;
- Cylinder-piston connection with a clearance of 0.05 mm;
- Heat exchange surfaces recalculated and modernized;
- Ultra compact piston with 3 rings;
- Material: special aluminum alloy with high silicon content;
- Machining on numerical control machine tools;
- Improved heat exchange surfaces;
- Piston rings: compression ring (cast iron S10), oil control ring (cast iron S10), 3-piece oil control ring - steel;
- This cylinder is compatible with the aluminum cylinder set 3116038 (Ø 67, pin Ø 13 H2O I-Tech 4 stroke);
- Does not include cylinder head;
- Bore: 67 mm;
- Piston pin diameter: 13 mm;
- Stroke: 47.2 mm;
- Class: Sport.
Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
