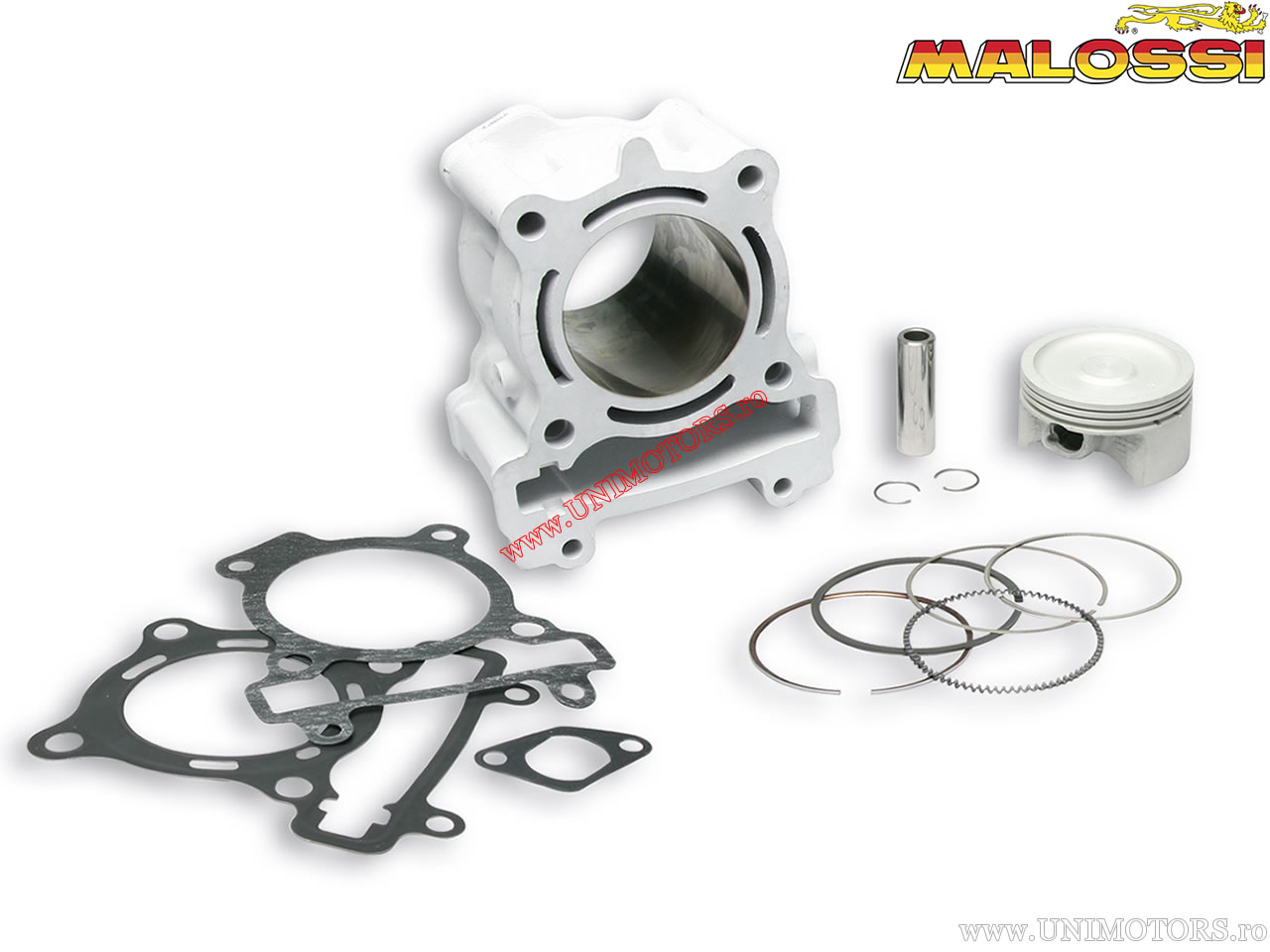

Cylinder aluminum I-Tech 4T (63mm) Malossi. Among the most important applications are: Beta RR Enduro 125 H2O 4T E3 2010-2013 / RR Motard 125 H2O 4T E3 2010-2013 / Fantic Cabellero Motard 125 H2O 4T E3 2009-2016 / Cabellero Regolarità 125 H2O 4T E3 2008-2016 / HM CRE-F Enduro 125 H2O 4T E3 2009-2016 / CRM-F SM 125 H2O 4T E3 2009-2016 / Husqvarna SM 125 H2O 4T E3 2010-2016 / TE 125 Enduro H2O 4T E3 2010-2016 / Malaguti X3M Enduro 125 H2O 4T E3 2008-2014 / X3M Motard 125 H2O 4T E3 2008-2014 / MBK Cityliner 125i H2O 4T E3 2008-2012 / Evolis 125i H2O 4T E3 2014-2016 / Evolis ABS 125i H2O 4T E3 2014-2016 / Evolis ABS 125i H2O 4T E4 2017 / Evolis II ABS 125i H2O 4T E4 2018 / Skycruiser 125i H2O 4T E3 2006-2009 / Skycruiser II 125i H2O 4T E3 2010-2013 / MBK Skycruiser II ABS 125i H2O 4T E3 2011-2013 / MBK Skycruiser II Sport 125i H2O 4T E3 2012 / Motorhispania Gun-R 125 H2O 4T E2 2011-2015 / KN1 125 H2O 4T E2 2009-2015 / MH7 Naked 125 H2O 4T E2 2007-2015 / RX-R 125 H2O 4T E2 2009-2015 / Rieju Marathon Enduro 125 H2O 4T E3 2009-2017 / Marathon SM 125 H2O 4T E3 2010-2017 / RS3 125 H2O 4T E3 2011-2017 / RS3 NKD 125 H2O 4T E3 2013-2017 / Yamaha MT 125i H2O 4T E3 2014-2016 / MT 125i H2O 4T E4 2017-2019 / WR125R Enduro H2O 4T E3 2008-2014 / WR125X SM H2O 4T E3 2008-2014 / X-City 125i H2O 4T E3 2008-2012 / X-Max 125i H2O 4T E3 2006-2009 / X-Max II 125i H2O 4T E3 2010-2013 / X-Max II ABS 125i H2O 4T E3 2011-2013 / X-Max II ABS Business 125i H2O 4T E3 2011-2012 / X-Max II Sport 125i H2O 4T E3 2011-2013 / X-Max III 125i H2O 4T E3 2014-2016 / X-Max III ABS 125i H2O 4T E3 2014-2016 / X-Max III ABS 125i H2O 4T E4 2017 / X-Max IV ABS 125i H2O 4T E4 2018-2020 / YZF125R H2O 4T E3 2008-2013 / YZF125R H2O 4T E3 2014-2016 / YZF125R H2O 4T E4 2017-2018.
- Cylinder for liquid-cooled engine;
- Material made from high-silicon primary aluminum alloy;
- Cylindrical sleeve with silicon carbide coating;
- Machined on high-precision CNC machines;
- Cylinder-piston connection with a clearance of 0.05 mm;
- Heat exchange surfaces recalculated and modernized;
- Ultra compact piston with 3 rings;
- Piston made from special aluminum alloy with high silicon content;
- Machined on CNC machines;
- Improved heat exchange surfaces;
- Piston rings: compression ring (steel), special ring (cast iron), and 3-piece oil control ring - steel;
- This cylinder is compatible with the complete aluminum cylinder 3114851 (Ø 63, pin Ø 14 H2O I-Tech 4 stroke);
- Does not include cylinder head;
- Bore: 63 mm;
- Piston pin diameter: 14 mm;
- Stroke: 58.6 mm;
- Class: Sport.
Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
