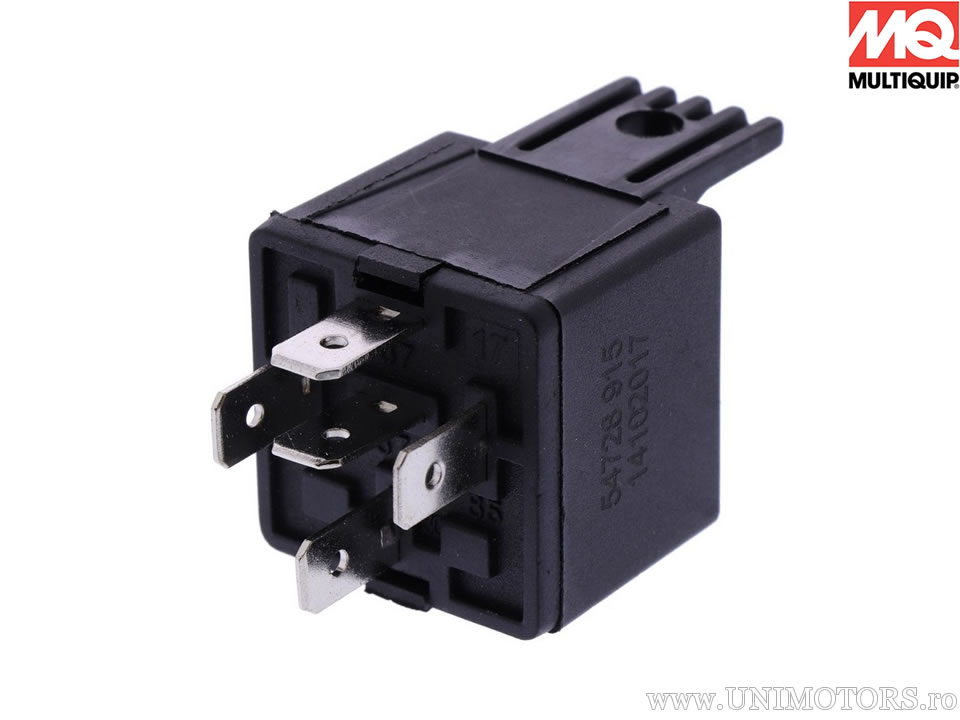

Normal open auxiliary relay 12V 5 pin - MQ.
Product description:
- auxiliary relay from MQ;
- working current relay with 5 pins, 12V;
- mini relay with bracket and 6.3mm blade terminals;
- with parallel resistance on the coil;
- closes the circuit between the power source and an electrical load;
- application range: main headlights, auxiliary lights, horns, heaters, fan motors, window lifts, air conditioning systems, and ignition systems, etc.;
- plug ID model: B1;
- circuit diagram: W1;
- temperature range from -40°C to max. 85°C;
- load capacity (at +85°C) NC contact;
- resistive load: 20A;
- inductive load: 6A;
- capacitive load: 10A;
- load capacity (at +85°C) normal open contact;
- resistive load: 30A;
- inductive load: 20A;
- capacitive load: 20A.
