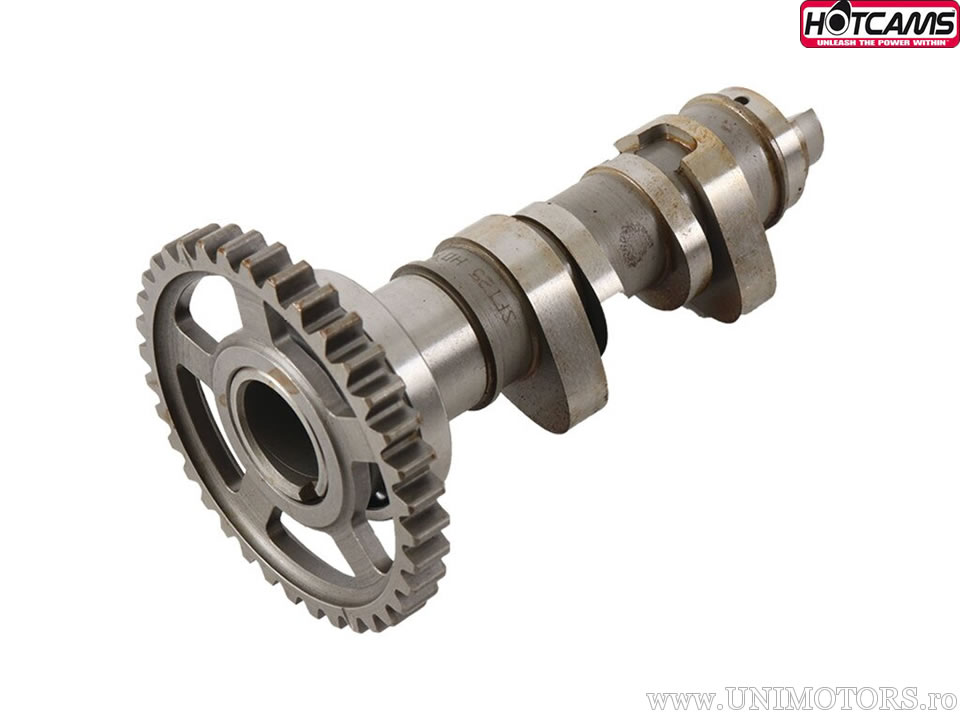

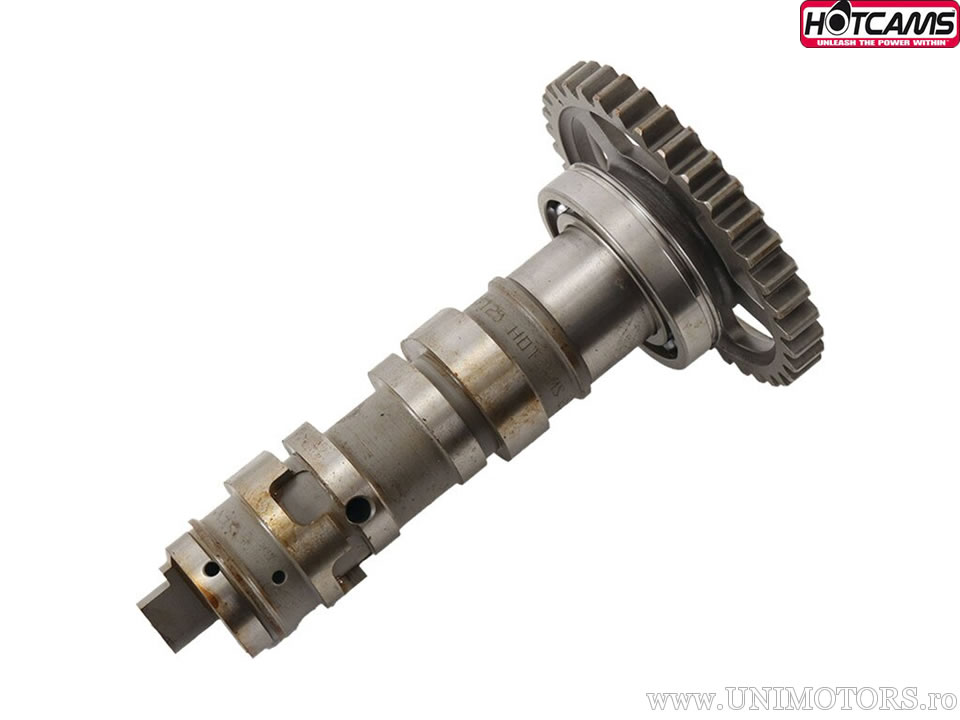

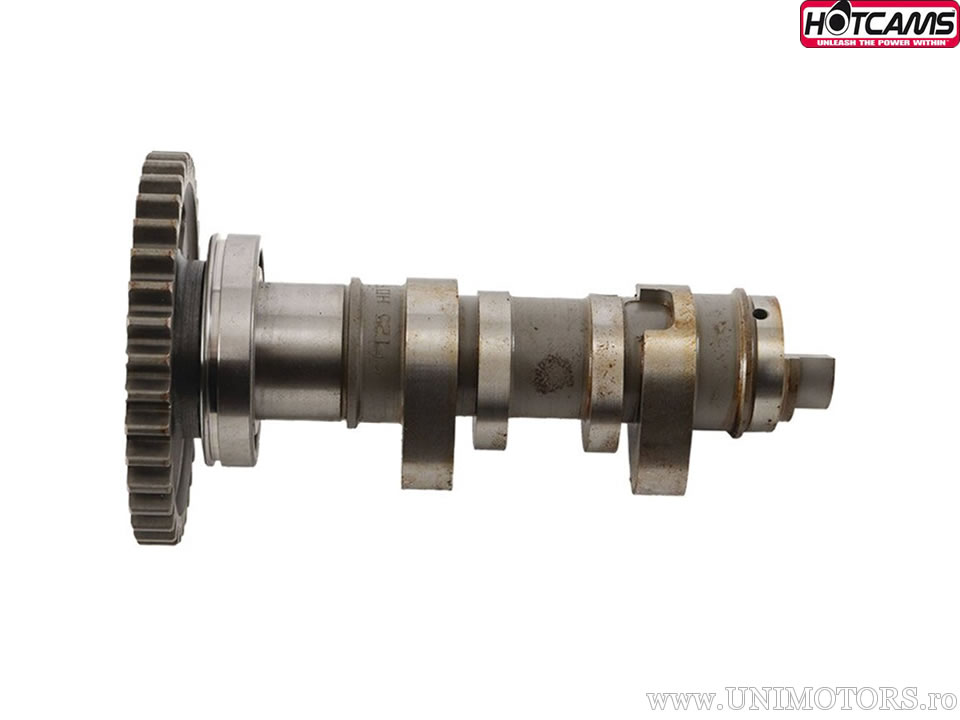

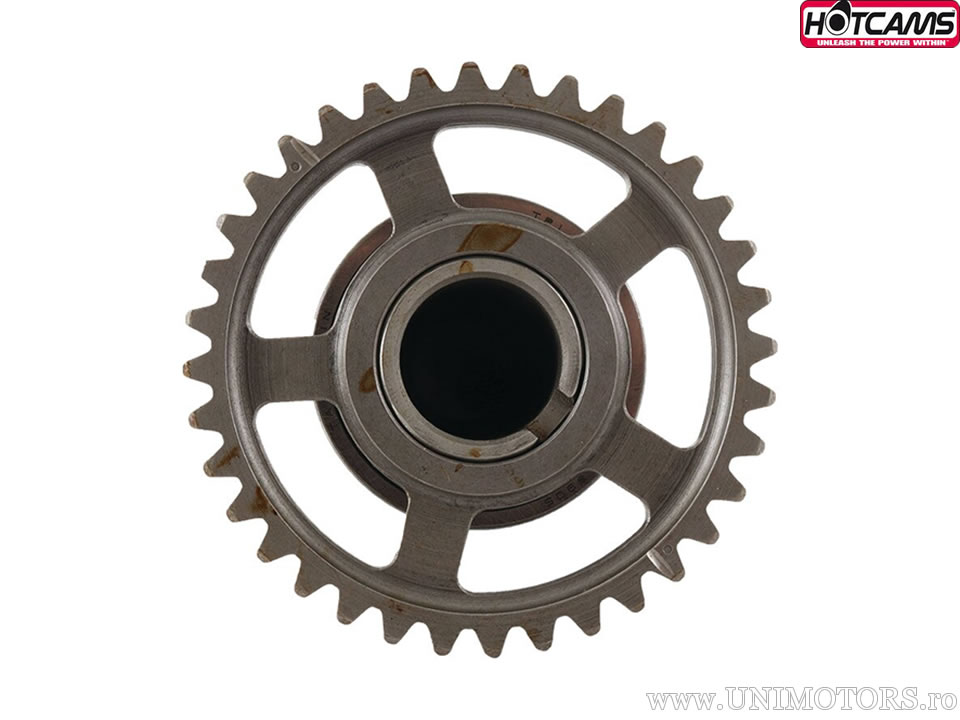

Ax came Stage 3 - Honda CRF450 R ('09) - Hot Cams

Camshaft Stage 3 from manufacturer Hot Cams for Honda CRF 450 R (2009).

Specifications:
- made with Computer Numerical Control (CNC) machinery from forged 8620 steel and hardened;
- designed and tested on a dynamometer in the USA;
- designed using software for the valve train;
- ensures a power increase of 5%-10%.

The camshafts include Hot Cams Improved Throttle Design (I.T.R.) technology - these camshafts enhance throttle response across the entire RPM range while providing significant power increases in the mid-range and at high RPMs. Stage 3 is designed for significantly greater power than Stage 2 in the upper RPM range.

Designed for direct installation, using original valve springs (unless otherwise specified).

Uses original valve springs and rockers. For single camshaft engines. The original auto-decompression mechanism is used.

Technical data
- exhaust valve clearance: 0.280 mm;
- intake valve clearance: 0.160 mm;
- brand: HOT CAMS;
- application: exhaust, intake;
- exhaust duration: 265°;
- exhaust valve lift: 9.00 mm;
- exhaust lobe centerline angle: 104°;
- intake duration: 252°;
- intake valve lift: 10.40 mm;
- intake lobe centerline angle: 118°;
- type: Stage 3;
- price: for one piece.

The complete application list can be found below.
