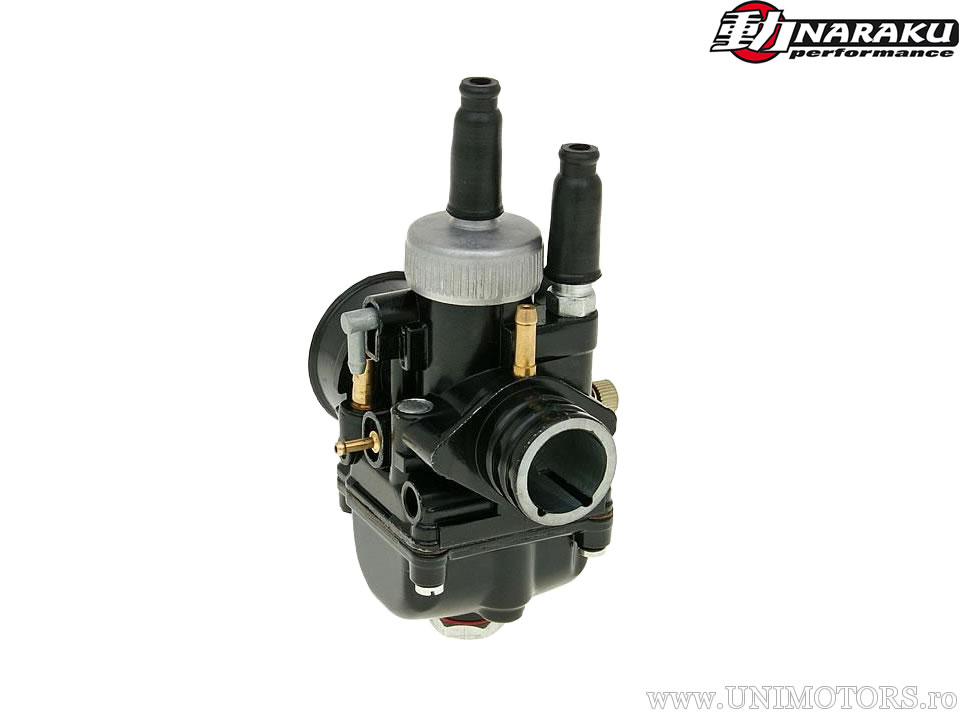

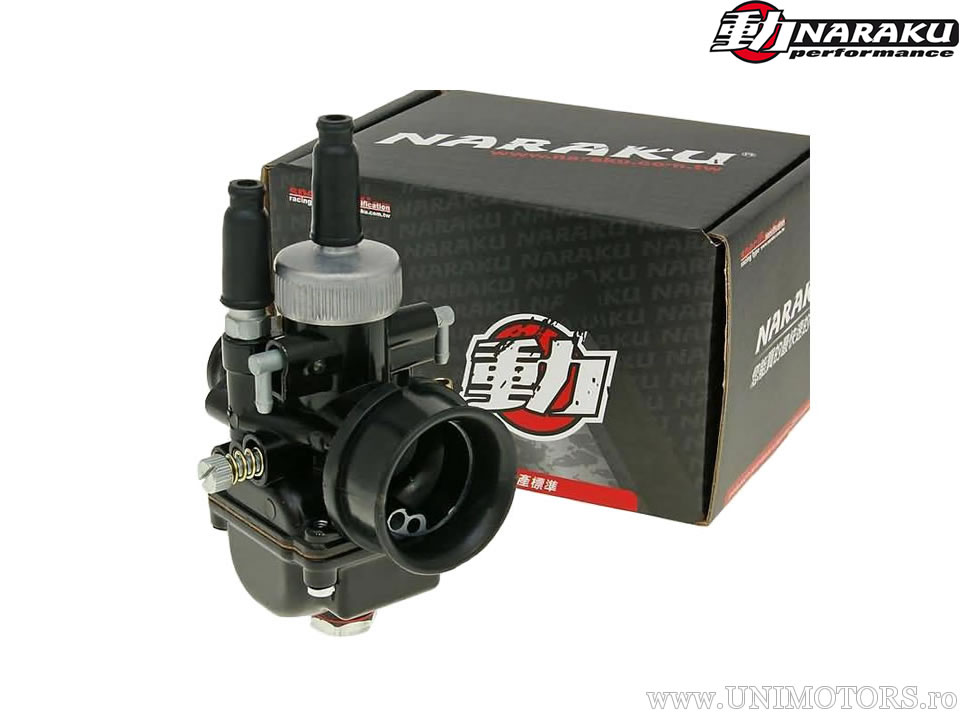

Carburetor (17.5mm) from manufacturer Naraku.
Product description:
- the tuning legend with connector plug from Naraku in a black edition;
- probably the most widely used tuning carburetor for 70 cc scooters and mopeds;
- this type of carburetor is easy to adjust and not very sensitive;
- this tuning carburetor is available in different versions;
- special features of this version include an aluminum float chamber and a threaded cap on the slide;
- the main jet can be easily changed via the maintenance screw in the float chamber;
- the carburetor has oil and vacuum ports;
- this is a tuning carburetor without vehicle-specific mapping;
- for some models, mounting kits and adapters must be used;
- manual choke included.
Technical specifications:
- carburetor diameter: 17.5 mm;
- main jet: 70 (5 mm);
- secondary jet: 40;
- starter jet: 60;
- intake manifold connection diameter: 25 mm;
- air filter connection diameter: 32/38 mm;
- carburetor needle: W16.
The complete application list can be found below.
