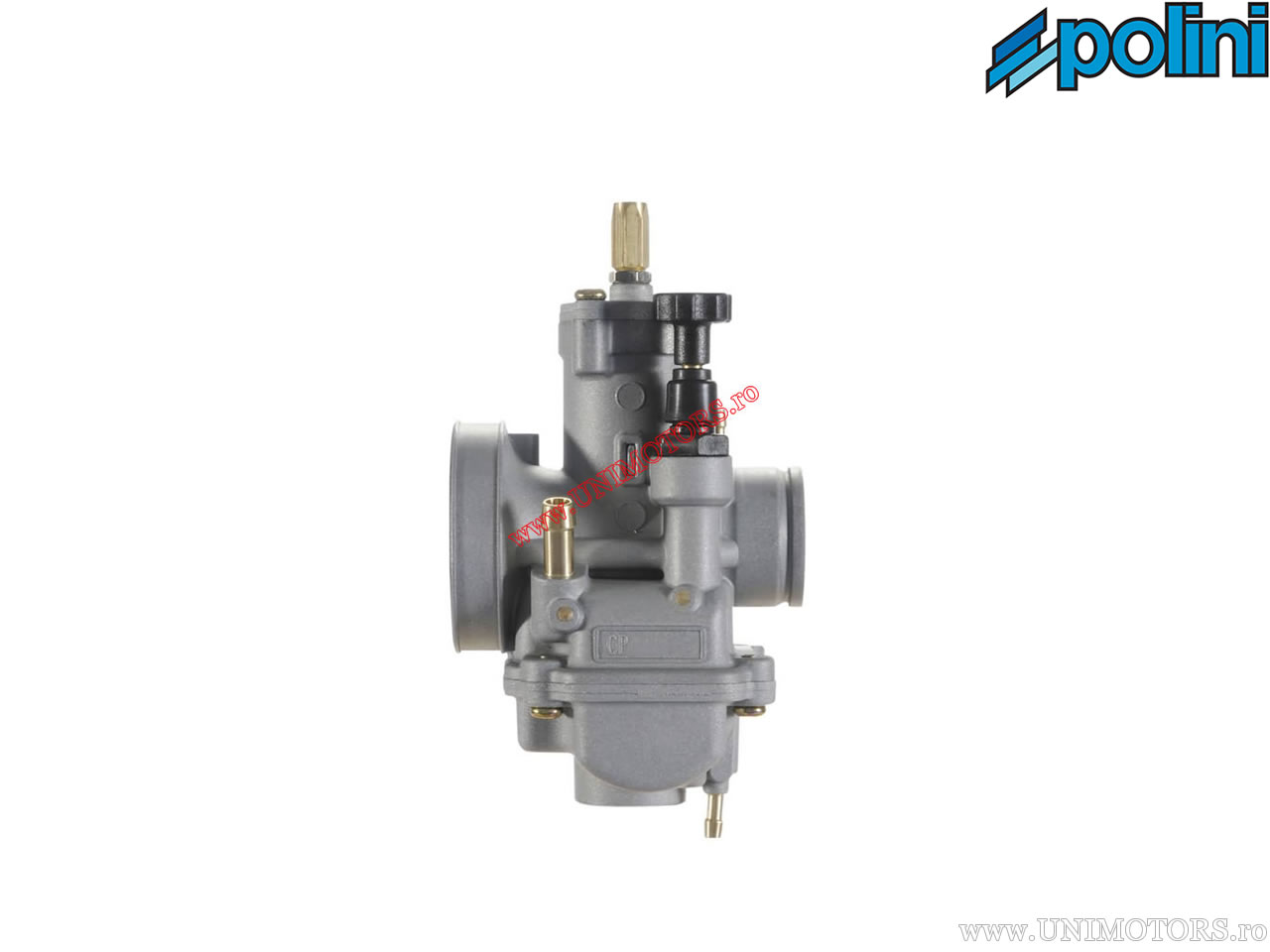

Innovative carburetor, whose component was designed, developed, and manufactured by the company from Bergamo. Available in a wide range of diameters: 15/17.5/19/21/23/24. It is made entirely of aluminum, has compact dimensions, and is 40% lighter than a traditional carburetor. The intake pipe is very short and features an exclusive concentric design and geometry that optimizes airflow during gas passage. The gasoline drainage from the atomizer was designed to ensure correct flow dynamics in every position of the throttle valve when opened. The hole where gasoline enters and the larger needle allow for constant suction even in the most extreme conditions. The float level, made entirely of plastic, and the needle sealing are carefully controlled in the production department to ensure the same efficiency standard over time. These features considerably simplify the carburetor setup. Due to extremely sophisticated calibration, the gasoline-air flows, main jets, and idle jets have been designed to achieve the best performance with lower consumption. The compact size of the new carburetor is the result of careful and meticulous management of the interior space and maximum efficiency of all components, subjected to strict controls. To ensure easy and precise mounting on the best-selling engines and compatibility with various filter boxes, both original and racing, flanges with different diameters are available. A prestigious project like this required a deep synergy of competencies in this field. A technologically advanced product with absolute reliability. 100% made in Italy.
Technical specifications:
- Diameter: 23 mm;
- Main jet: 110 mm;
- Idle jet: 40;
- Needle: 14/22;
- Valve: 24x30 mm;
- Atomizer bushing: 2.7 mm;
- Type: CP;
- Class: Mid-Race.
