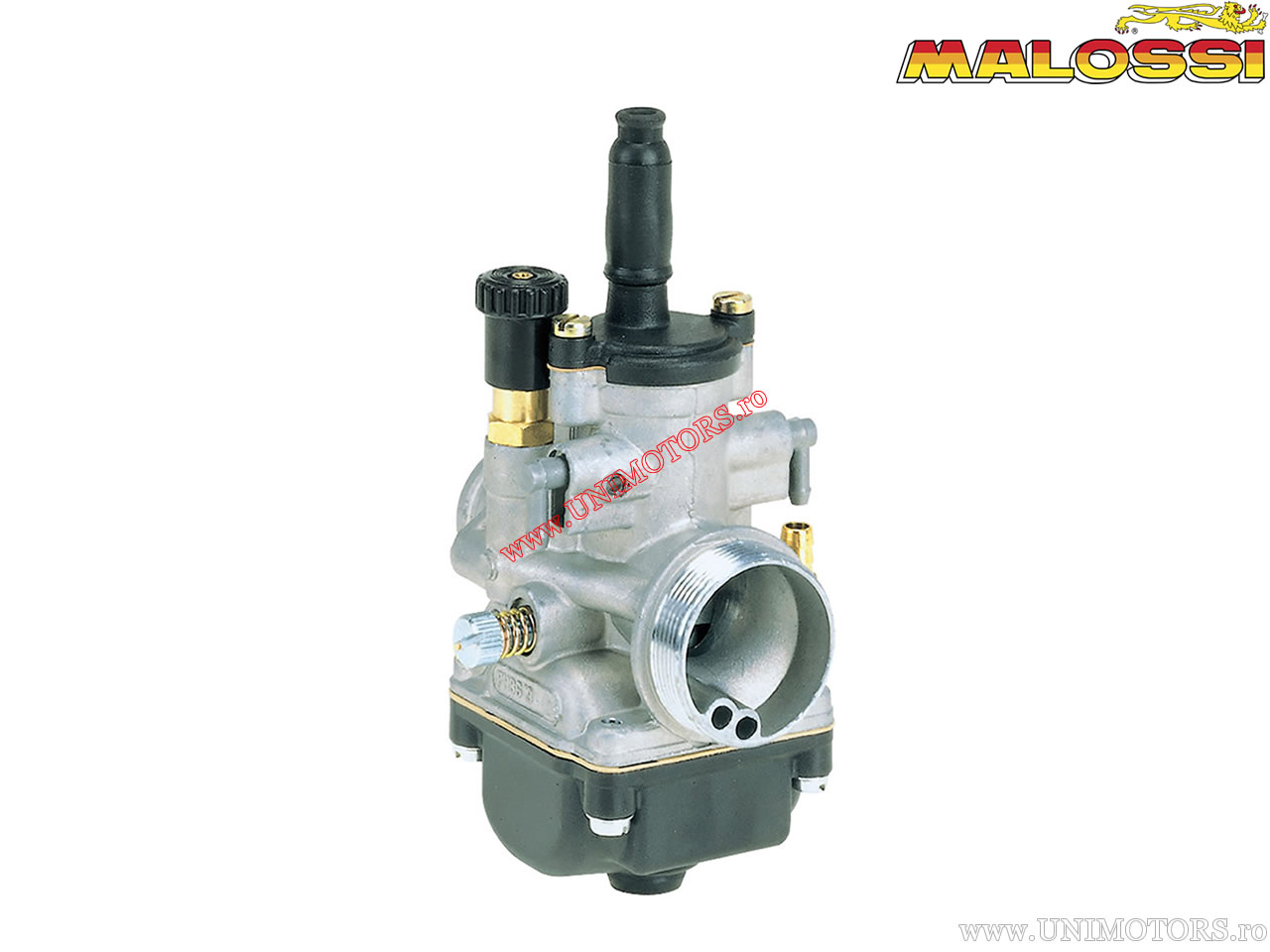

Carburetor Dellorto PHBG 18 AD - Malossi

Carburetor Dellorto PHBG 18 AD Malossi.

- Piston-type throttle valve;
- Independent starting circuit;
- Idle system with mixture and jet adjustment screw;
- Main circuit with mechanical mixture adjustment via a tapered needle;
- Connection through an insulating reducer from Ø 26 to Ø 24-23 for PHBG A-C types;
- Elastic mounting connection Ø 25 for PHBG B and D types;
- Air intake connection Ø 32 and Ø M32 x 1.25 for assembly of connections;
- Material: die-cast zinc alloy (zinc, aluminum, magnesium, and copper);
- Engine: 50-100cc, 2-stroke;
- Application: motorcycles;
- Venturi diameter: 15 - 16 - 17 - 17.5 - 18 - 19 - 19.5 - 20 - 21 mm;
- Diameter: 18 mm;
- Type: PHBG.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
