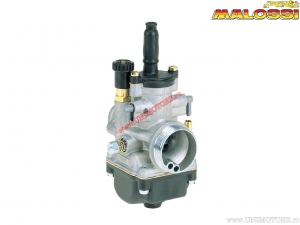

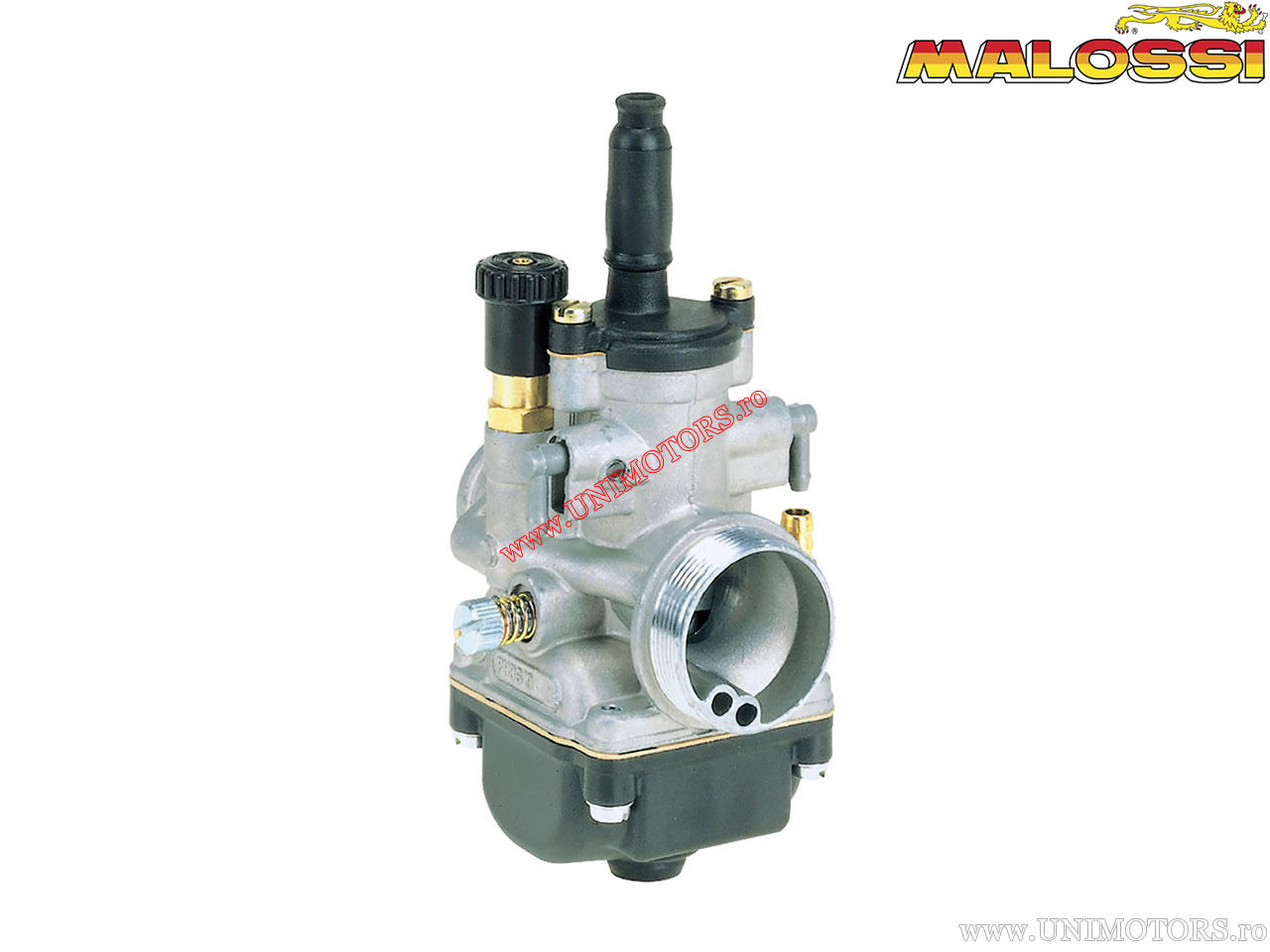

Carburetor Dellorto PHBG 21 AD (A02590) - Malossi

Carburetor Dellorto PHBG 21 AD Malossi.

- Piston-type throttle valve;
- Independent electric or manual starting circuit;
- Idle system with adjustment screw for the jet and air;
- Main circuit with mechanical mixture adjustment via a tapered needle;
- Connection through an insulating reducer from Ø 26 to Ø 24-23 for PHBG A-C types;
- Elastic mounting connection Ø 25 for PHBG B and D types;
- Air intake connection Ø 32 and Ø M32 x 1.25 for assembly joints;
- Engine: 50-100cc, 2-stroke;
- Application: motorcycles;
- Venturi diameter: 15 - 16 - 17 - 17.5 - 18 - 19 - 19.5 - 20 - 21 mm;
- Diameter: 21 mm;
- Type: PHBG;
- Material: die-cast zinc alloy (zinc, aluminum, magnesium, and copper).

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
