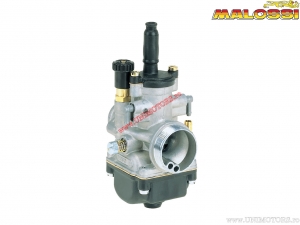

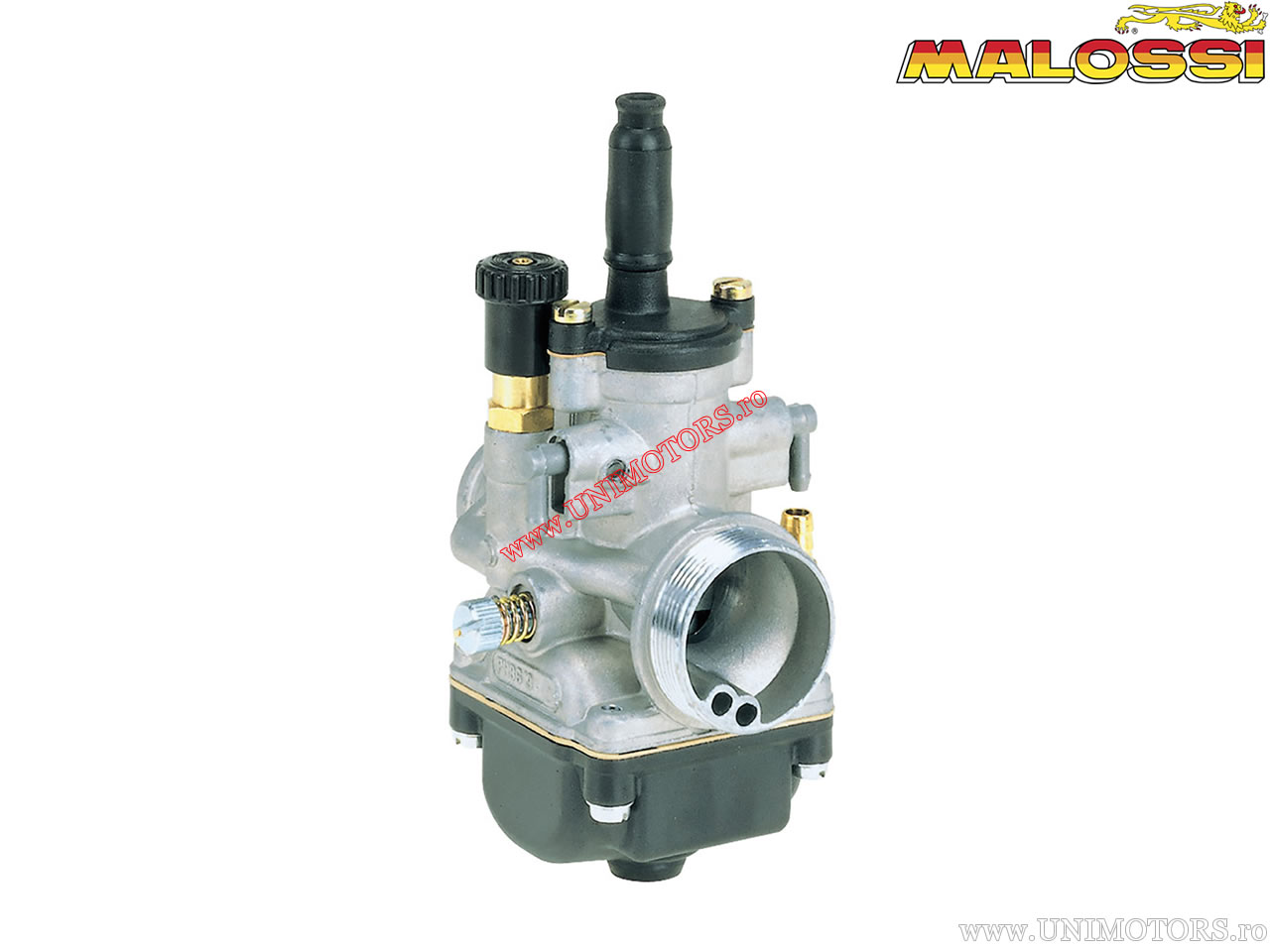

Carburetor Dellorto PHBG 21 AS (A02648) - Malossi

Carburetor Dellorto PHBG 21 AS Malossi.

- Piston-type throttle valve;
- Independent electric or manual starting circuit;
- Idle system with adjustment screw for the jet and air;
- Main circuit with mechanical mixture adjustment via a tapered needle;
- Connection through an isolating reducer socket from Ø 26 to Ø 24-23 for PHBG A-C types;
- Elastic mounting connection Ø 25 for PHBG B and D types;
- Air intake connection Ø 32 and Ø M32 x 1.25 for assembly joints;
- Engine: 50-100cc, 2-stroke;
- Application: motorcycles;
- Venturi diameter: 15 - 16 - 17 - 17.5 - 18 - 19 - 19.5 - 20 - 21 mm;
- Diameter: 21 mm;
- Type: PHBG;
- Material: die-cast zinc alloy (zinc, aluminum, magnesium, and copper) under pressure.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
