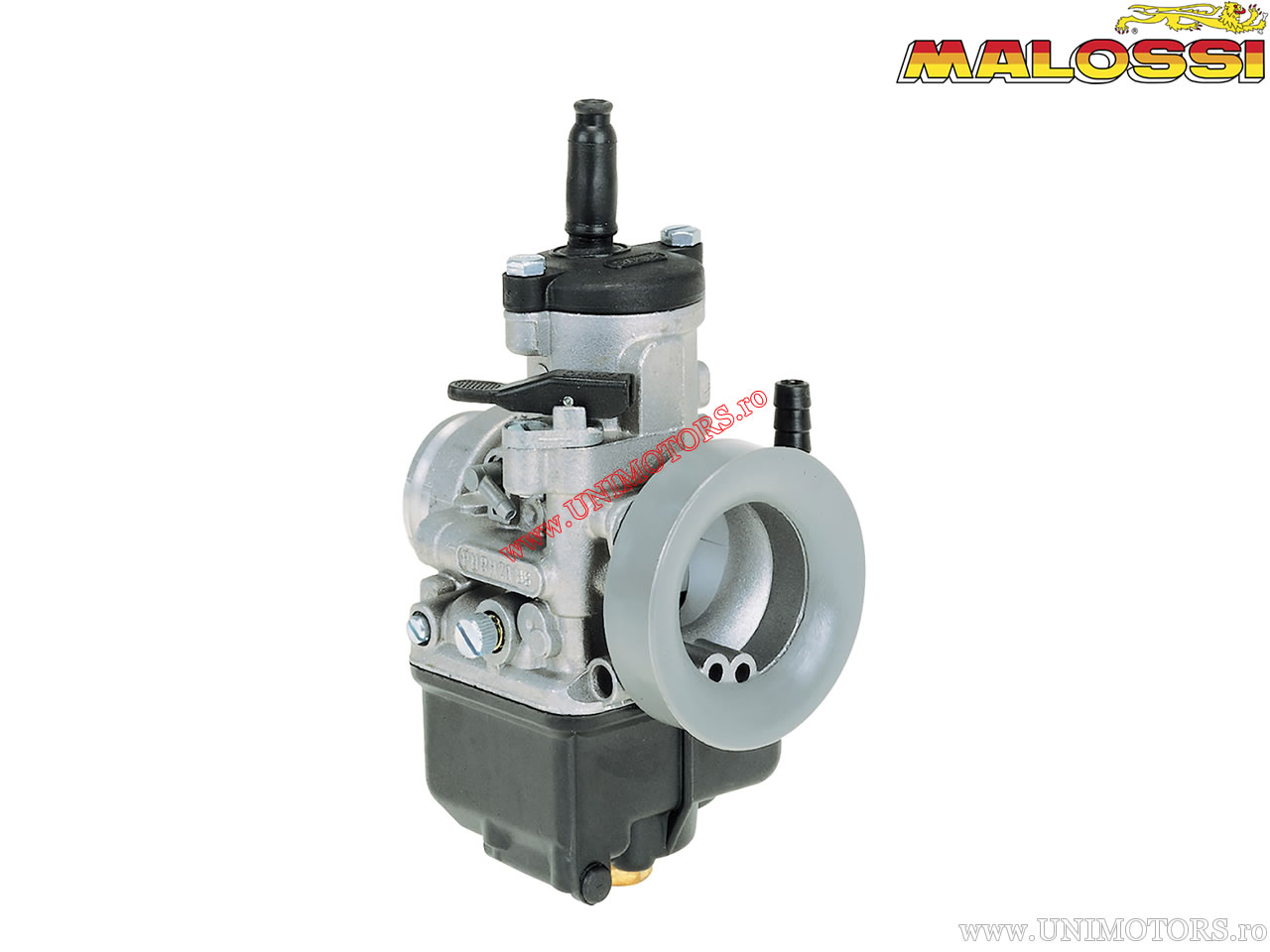

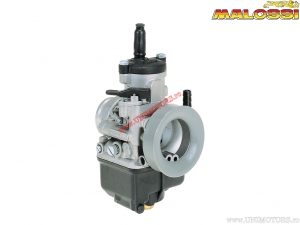

Carburetor Dellorto PHBH 30 BD (A03489) - Malossi

Carburetor Dellorto PHBH 30 BD Malossi.

- Piston-type throttle valve;
- Independent starting circuit;
- Idle system with adjustment screw for the jet and mixture or air adjustment screw;
- Main circuit with mechanical mixture adjustment via conical needle;
- Versions with idle adjustment screw on the left and/or right;
- Bowl with the possibility of assembling independent floats;
- Versions with piston accelerator pump or mechanically operated diaphragm accelerator pump;
- Sleeve connection with insulating reducer from Ø 40 to Ø 35 and elastic mounting connector Ø 36;
- Air intake connection Ø 42 or Ø M42 x 1.25 for assembling joints;
- Engine: 125-300cc, 2-4 stroke;
- Application: motorcycles;
- Venturi diameter: 26 - 28 - 30 mm;
- Diameter: 30 mm;
- Type: PHBH.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
