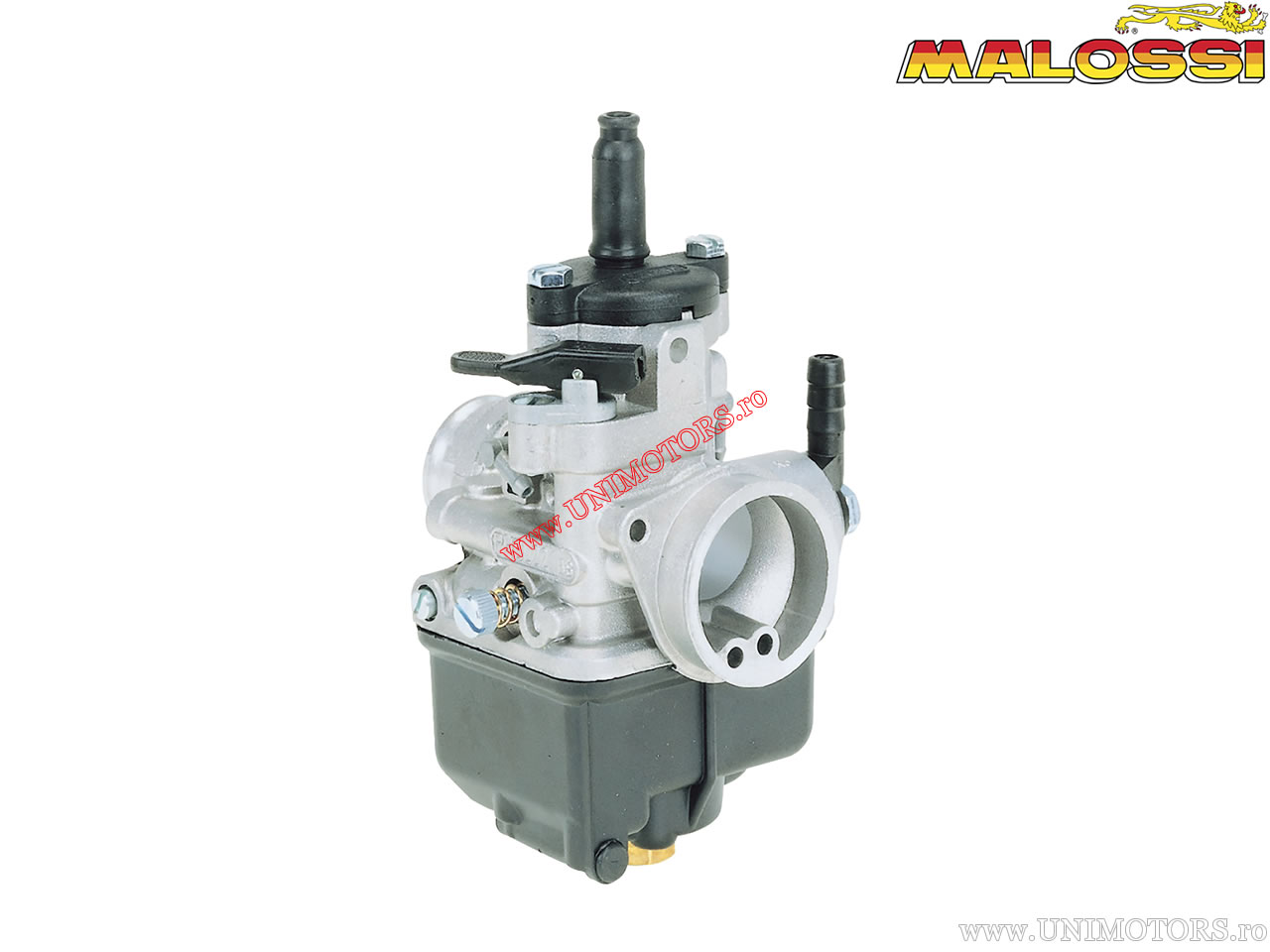

Carburetor Dellorto PHBL 20 AS - Malossi

Carburetor Dellorto PHBL 20 AS Malossi.

- Piston-type throttle valve;
- Independent starting circuit;
- Idle system with adjustment screw for the jet and mixture;
- Main circuit with mechanical mixture adjustment via conical needle;
- Versions with mixture adjustment screw on the right and/or left;
- Versions with mechanically actuated diaphragm accelerator pump;
- Connection with sleeve with insulating reducer from Ø 31.75 to Ø 28.57;
- Elastic fixing connector Ø 31;
- Air intake connector Ø 38 or Ø M38 x 1.25 for assembly of joints;
- Material: die-cast housing made of zamak (zinc, aluminum, magnesium, and copper alloy);
- Engine: 50-300cc, 2-4 stroke;
- Application: motorcycles;
- Venturi diameter: 20 - 22 - 24 - 25 - 26 mm;
- Diameter: 20 mm;
- Type: PHBL.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
