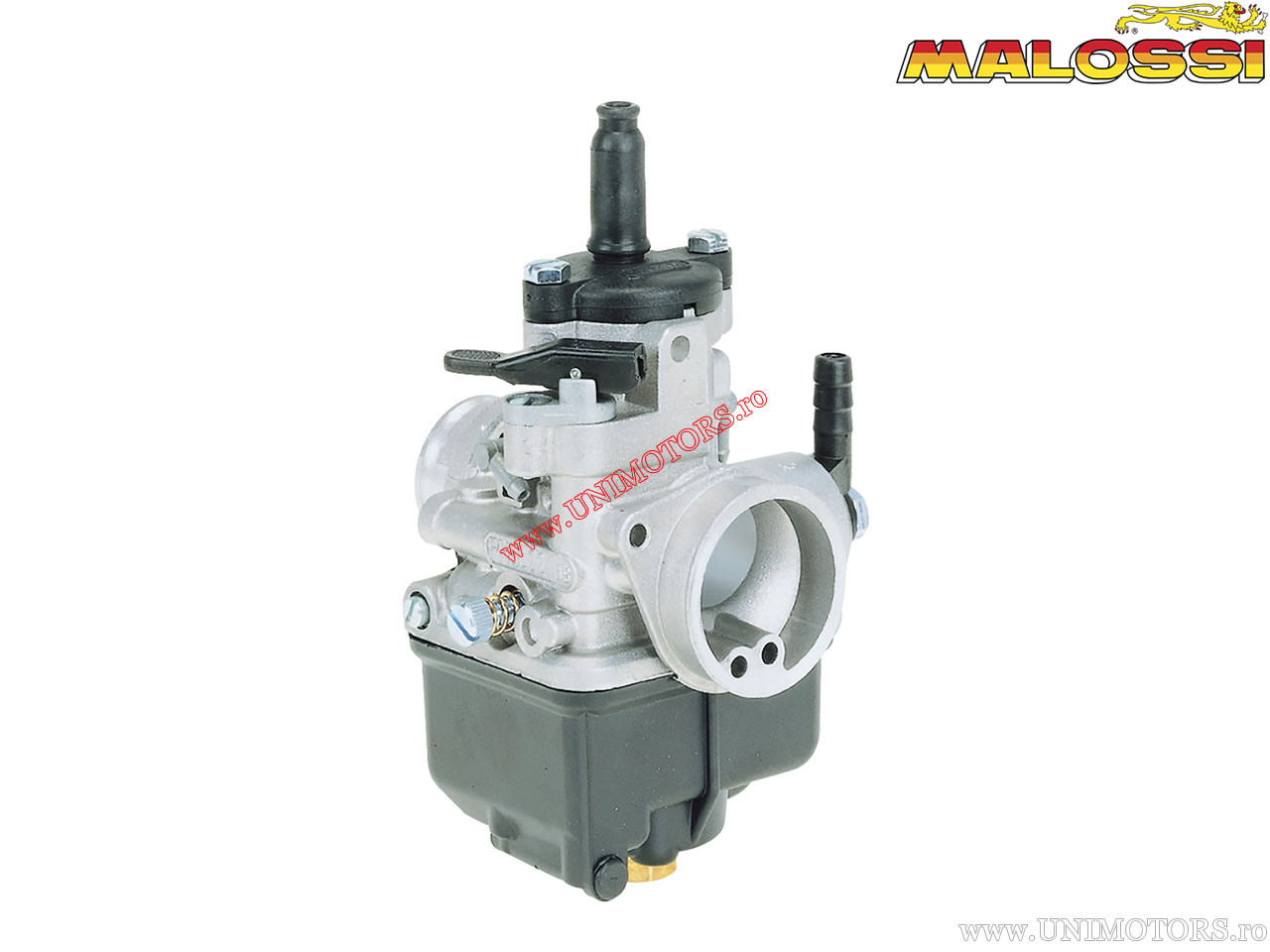

Carburetor Dellorto PHBL 22 AS (A02707) - Malossi

Carburetor Dellorto PHBL 22 AS Malossi.

- Piston-type throttle valve;
- Independent starting circuit;
- Idle system with adjustment screw for the jet and mixture;
- Main circuit with mechanical mixture adjustment via conical needle;
- Versions with mixture adjustment screw on the right and/or left;
- Versions with mechanically actuated diaphragm accelerator pump;
- Sleeve connection with insulating reducer from Ø 31.75 to Ø 28.57 and elastic mounting connector Ø 31;
- Air intake connection Ø 38 or Ø M38 x 1.25 for assembly joints;
- Engine: 50-300cc, 2-4 stroke;
- Application: motorcycles;
- Venturi diameter: 20 - 22 - 24 - 25 - 26 mm;
- Diameter: 22 mm;
- Type: PHBL;
- Material: die-cast zinc alloy (zinc, aluminum, magnesium, and copper).

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
