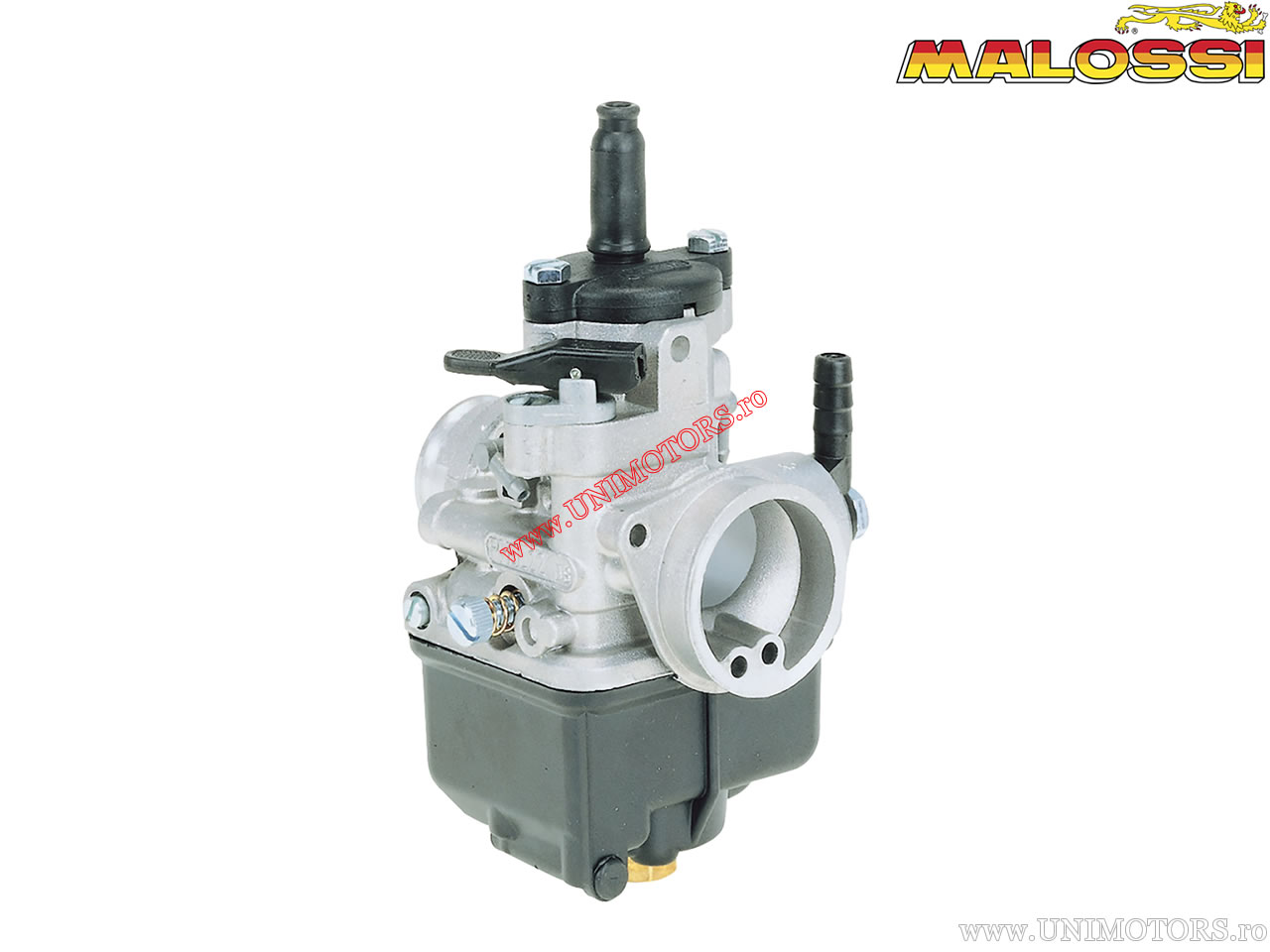

Carburetor Dellorto PHBL 24 AD (A02733) - Malossi

Carburetor Dellorto PHBL 24 AD Malossi.

- Piston-type throttle valve;
- Independent starting circuit;
- Idle system with mixture and jet adjustment screw;
- Main circuit with mechanical mixture adjustment via conical needle;
- Versions with mixture adjustment screw on the right and/or left;
- Versions with mechanically actuated diaphragm accelerator pump;
- Sleeve connection with insulating reducer from Ø 31.75 to Ø 28.57 and elastic mounting connector Ø 31;
- Air intake connector Ø 38 or Ø M38 x 1.25 for assembly joints;
- Engine: 50-300cc, 2-4 stroke;
- Application: motorcycles;
- Venturi diameter: 20 - 22 - 24 - 25 - 26 mm;
- Diameter: 24 mm;
- Type: PHBL;
- Material: die-cast zinc alloy (zinc, aluminum, magnesium, and copper).

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
