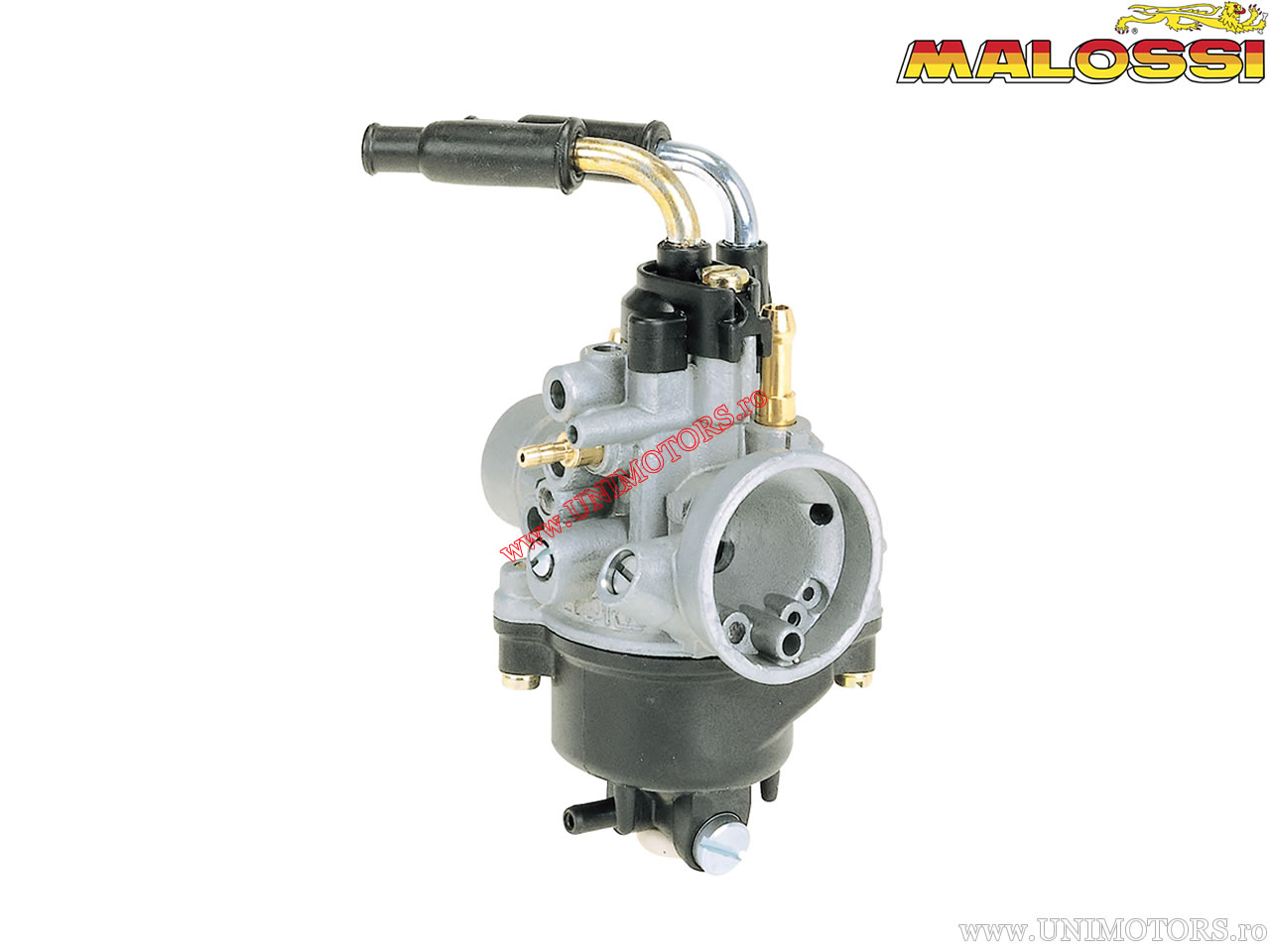

Carburetor Dellorto PHBN 16 PS - Malossi

Carburetor Dellorto PHBN 16 PS Malossi.

- Piston-type throttle valve;
- Independent starting circuit;
- Idle system with adjustment screw for the jet and air;
- Main circuit with mechanical mixture adjustment via a conical needle Ø 24 flexible connection;
- Air intake connection Ø 35;
- Material: die-cast zinc-aluminum-magnesium-copper alloy;
- Engine: 50-100cc, 2-stroke;
- Application: scooter, moped;
- Venturi diameter: 12 - 13 - 14 - 15 - 16 - 17.5 mm;
- Diameter: 16 mm;
- Type: PHBN.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
