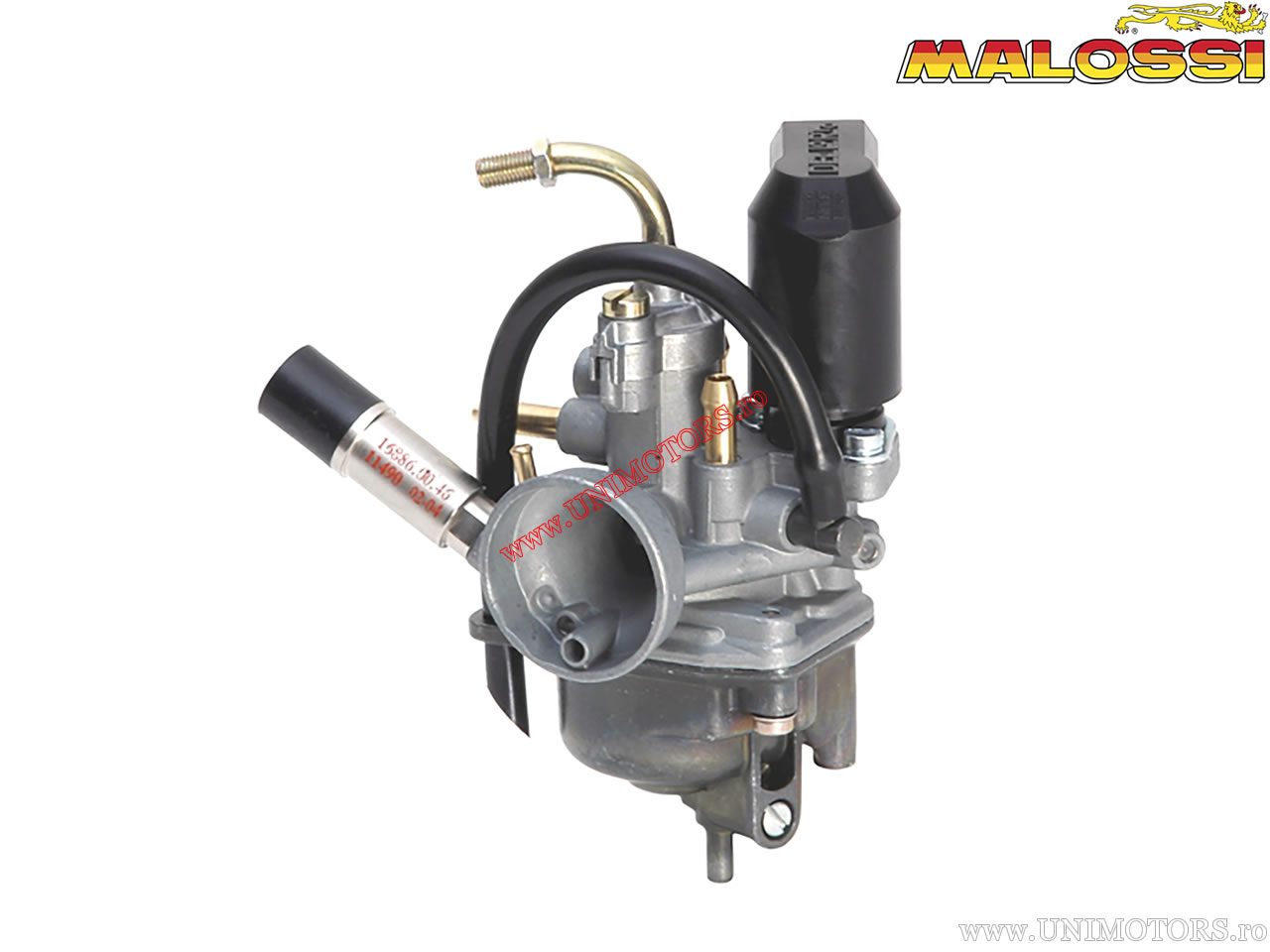

Carburetor Dellorto PHVA 17.5 MD - Malossi

Carburetor Dellorto PHVA 17.5 MD Malossi.

- Piston-type throttle valve;
- Independent electric or manual starting circuit;
- Idle system with adjustment screw for the jet and air;
- Main circuit with mechanical mixture adjustment via conical needle;
- Elastic mounting connection Ø 24;
- Air intake connection Ø 35;
- Material: housing made of die-cast zinc-aluminum-magnesium-copper alloy;
- Engine: 50-100cc, 2-stroke;
- Application: scooter, moped;
- Venturi diameter: 10 - 12 - 14 - 16 - 17.5 mm;
- Diameter: 17.5 mm;
- Type: PHVA.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
