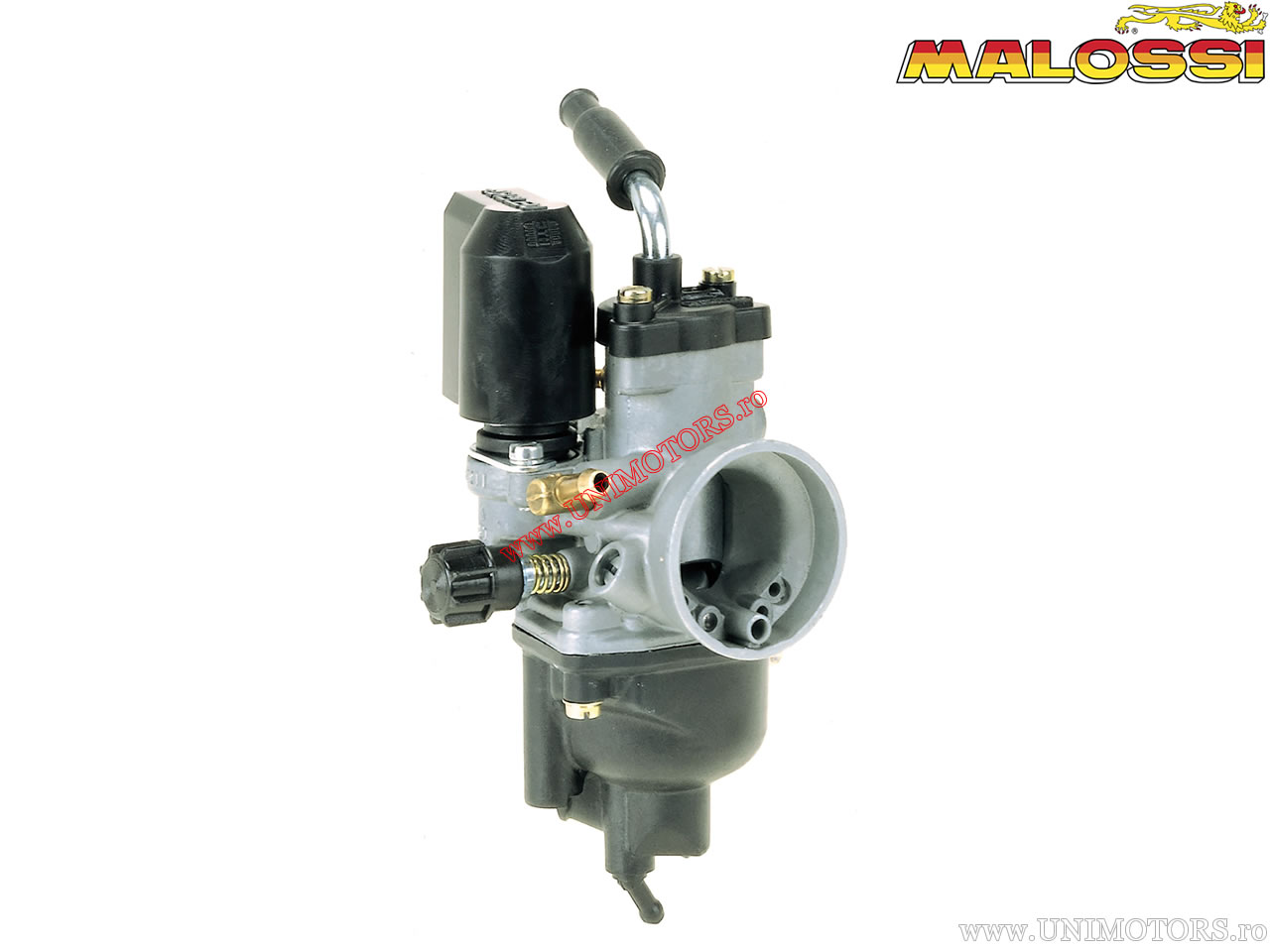

Carburetor Dellorto PHVB 20.5 ED (A01177) - Malossi

Carburetor Dellorto PHVB 20.5 ED Malossi.

- Piston-type throttle valve;
- Independent electric or manual starting circuit;
- Idle system with adjustment screw for the jet and air;
- Main circuit with mechanical mixture adjustment via tapered needle;
- Flexible mounting connector Ø 29;
- Air intake connector Ø 39.5;
- Engine: 50-100cc, 2-stroke;
- Application: motorcycles;
- Venturi diameter: 15 - 16 - 17 - 17.5 - 18 - 19 - 19.5 - 20 - 21 mm;
- Diameter: 20.5 mm;
- Type: PHVB.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
