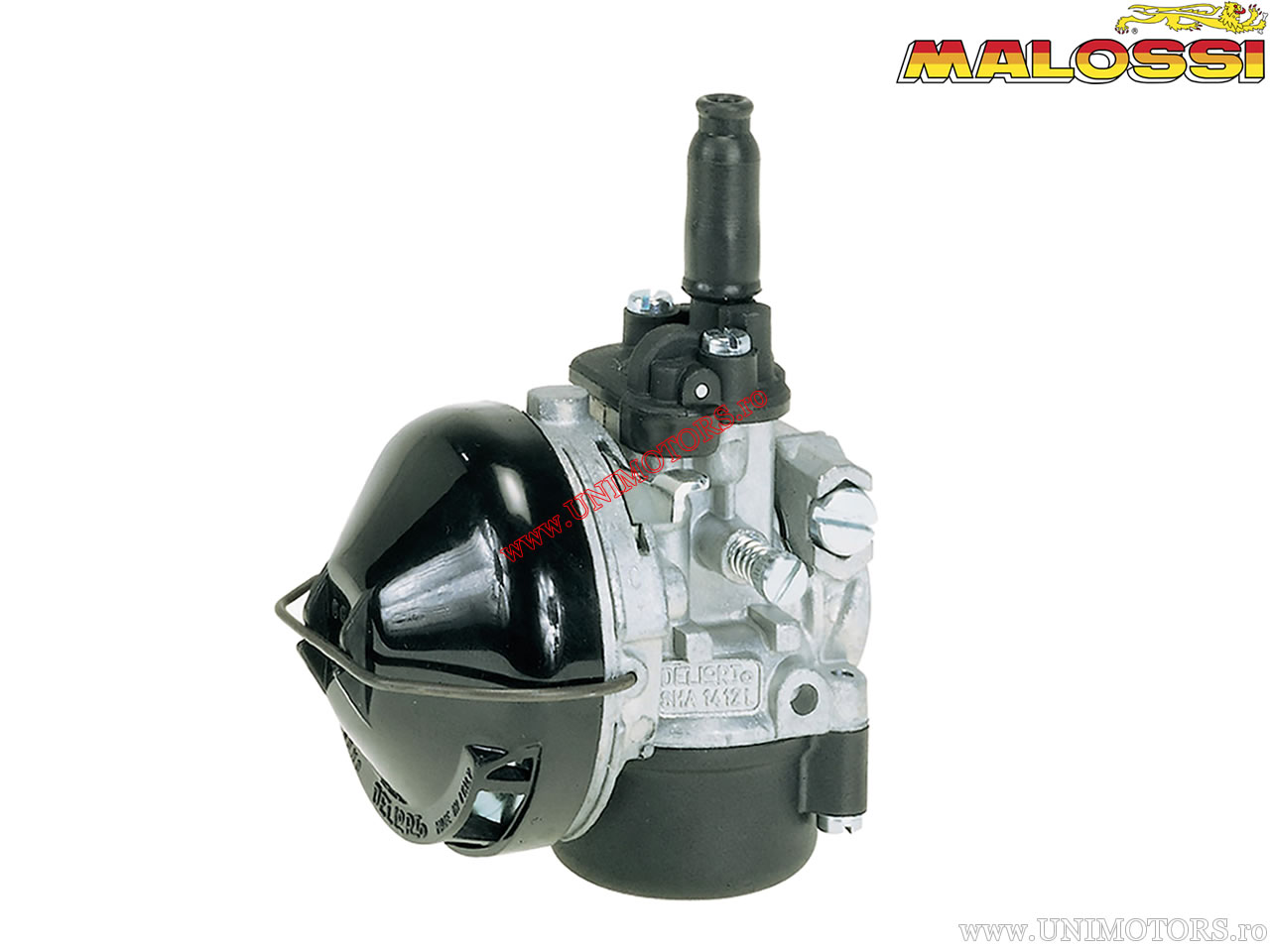

Carburetor Dellorto SHA 14 9 M - Malossi

Carburetor Dellorto SHA 14 9 M Malossi.

- Flat throttle valve with inclined spring;
- Semi-automatic starting device with choke valve;
- Idle system with mixture extraction from the main circuit;
- Main circuit with automatic mixture adjustment;
- Connection with insulating reducer from Ø 21 to 16 - 17 - 18 - 19 and from Ø 20 to Ø 16 - 18;
- Possibility of mounting various air intakes;
- Material: housing made of zamak (zinc, aluminum, magnesium, and copper alloy) die-cast;
- Engine: 50-100cc, 2-stroke;
- Application: scooter, moped;
- Venturi diameter: 9 - 10 - 12 - 14 - 15 - 16 mm;
- Barrel diameter: 14 - 15 - 16 mm;
- Type: SHA.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
