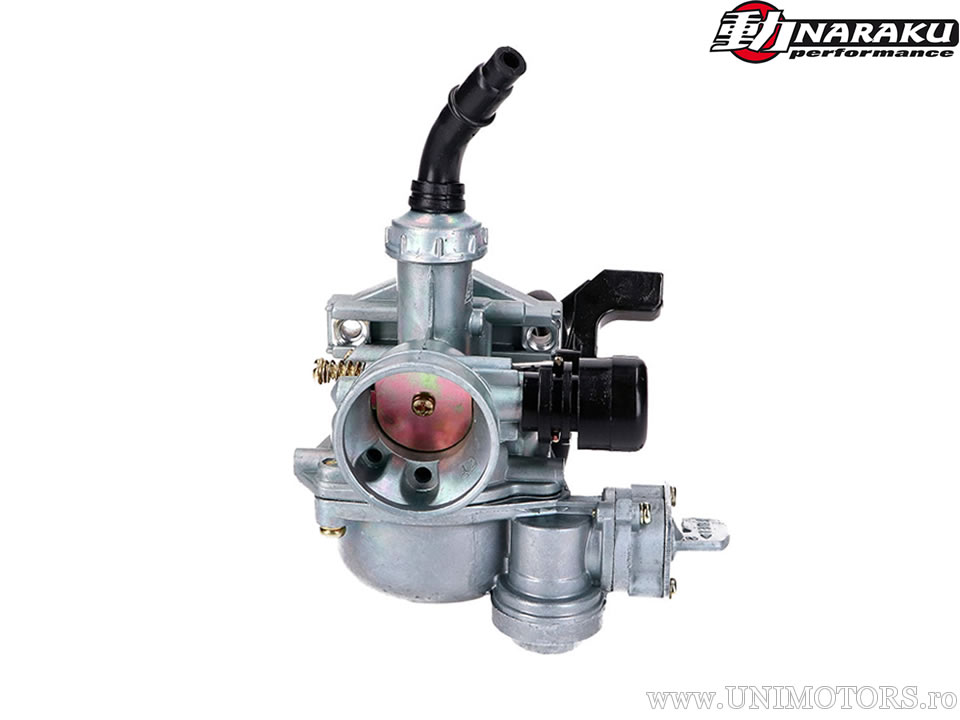

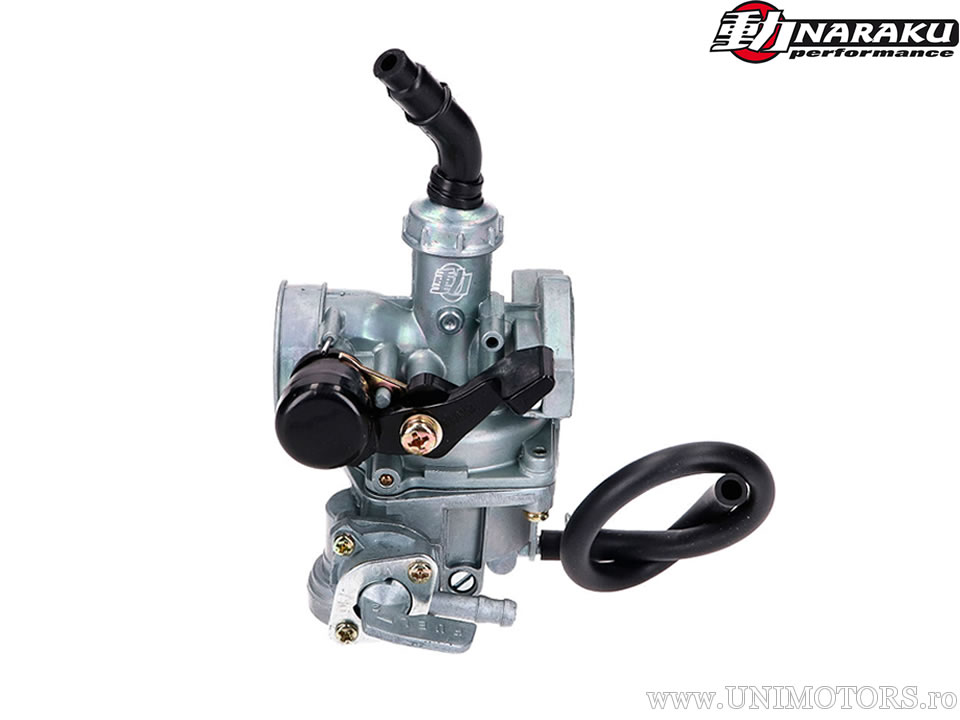

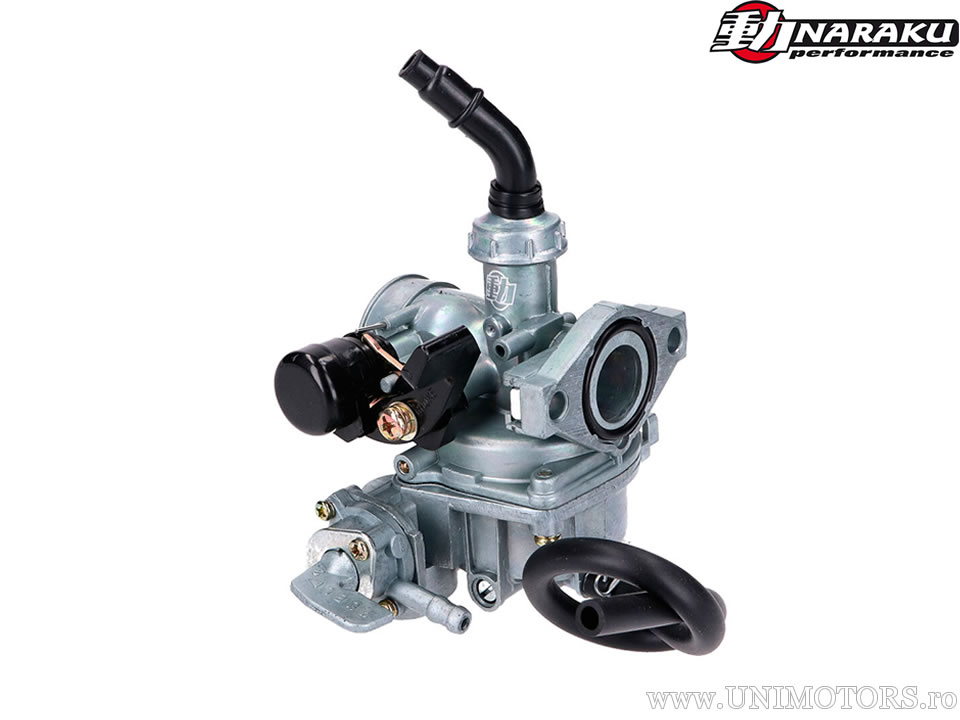

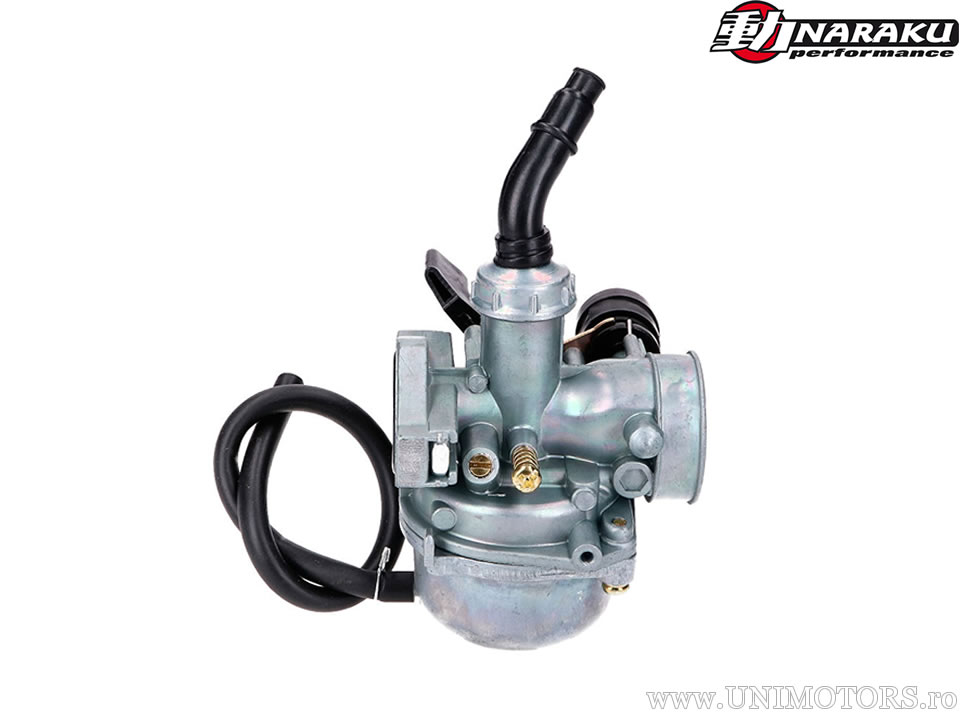

PZ19 carburetor from manufacturer Naraku.
Product description:
- Naraku carburetor suitable for 4-stroke ATVs from 50 cc ->110 cc, motorcycles, and go-karts with Chinese 4-stroke engines;
- also suitable for Honda and Yamaha vehicles with the corresponding carburetor flange;
- this Naraku carburetor is recommended as a replacement part for both tuned and untuned engines;
- carburetor equipped with a foldable manual choke and has a permanently installed fuel tap.
Technical specifications:
- carburetor diameter: 19 mm;
- main jet: 75 (M4);
- main jet: 28 (M5);
- distance between intake manifold holes: 48 mm;
- air filter connection diameter: 35 mm.
The complete application list can be found below.
