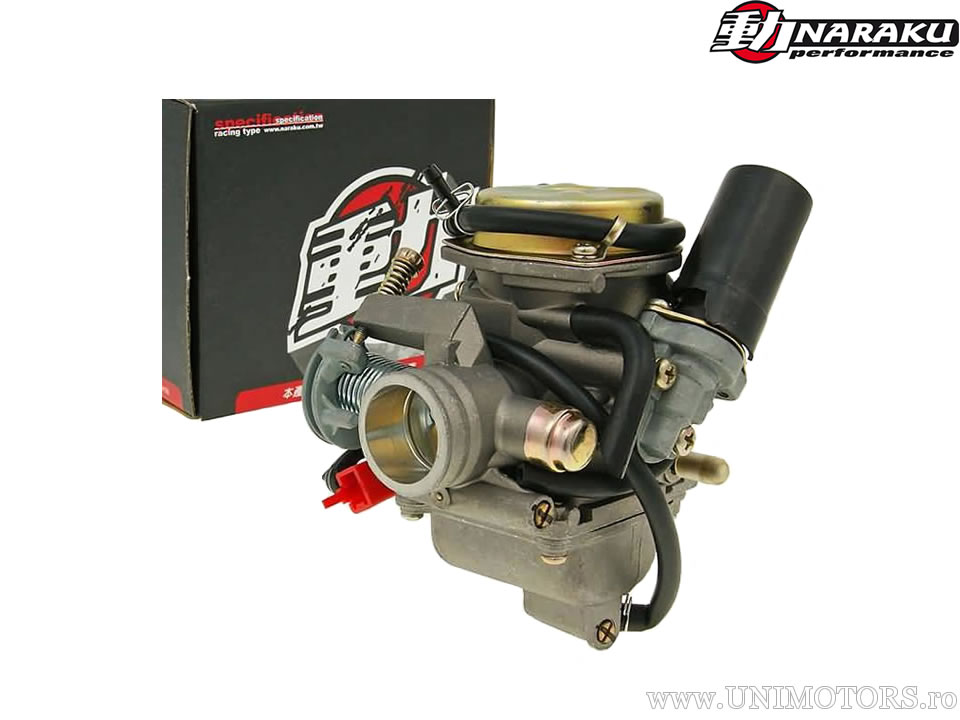

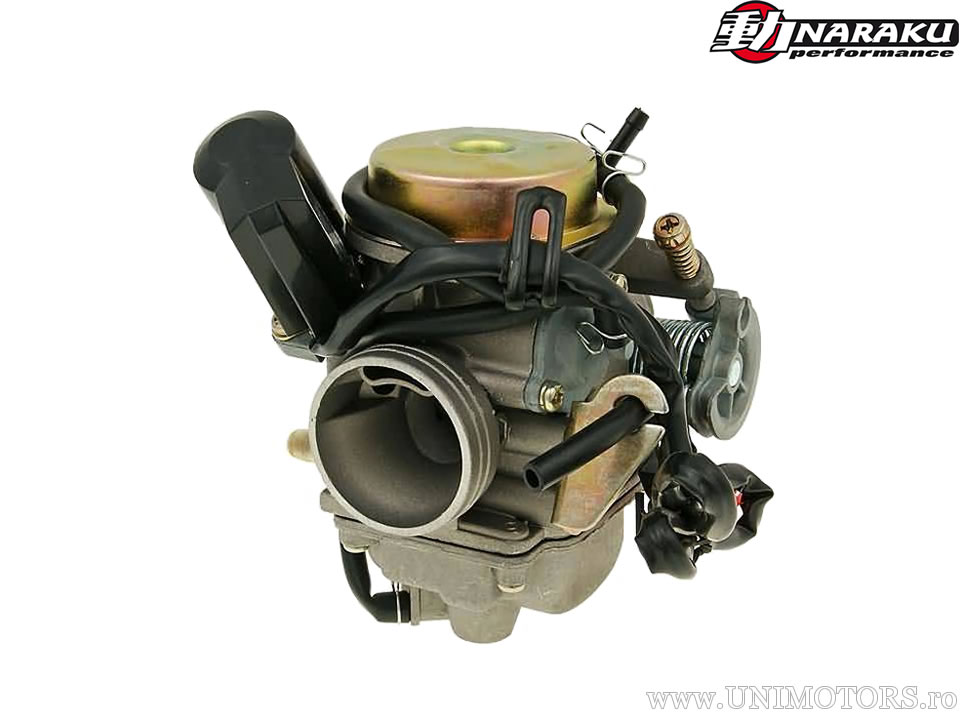

Carburetor (diameter 24mm) - Naraku

Carburetor (24mm) from manufacturer Naraku.

Product Description:
- vacuum-operated carburetor from Naraku;
- also suitable for GY6 50cc 4T engines;
- the carburetor is equipped with electric choke and is pre-jetted for 51 mm cylinder kits from Naraku;
- the original Bowden throttle cable can still be used;
- the Bowden cable sheath on the carburetor side needs to be shortened slightly;
- for installation, it is recommended to use the 24 mm intake manifold kit;
- can be used as a replacement for the Mikuni BS24 carburetor on older Aprilia and Piaggio 4T engines of 125-150 cc.

Technical Specifications:
- carburetor diameter: 24 mm;
- main jet: 102;
- pilot jet: 35;
- intake manifold connection diameter: 32 mm;
- air filter connection diameter: 42 mm.

The complete application list can be found below.
