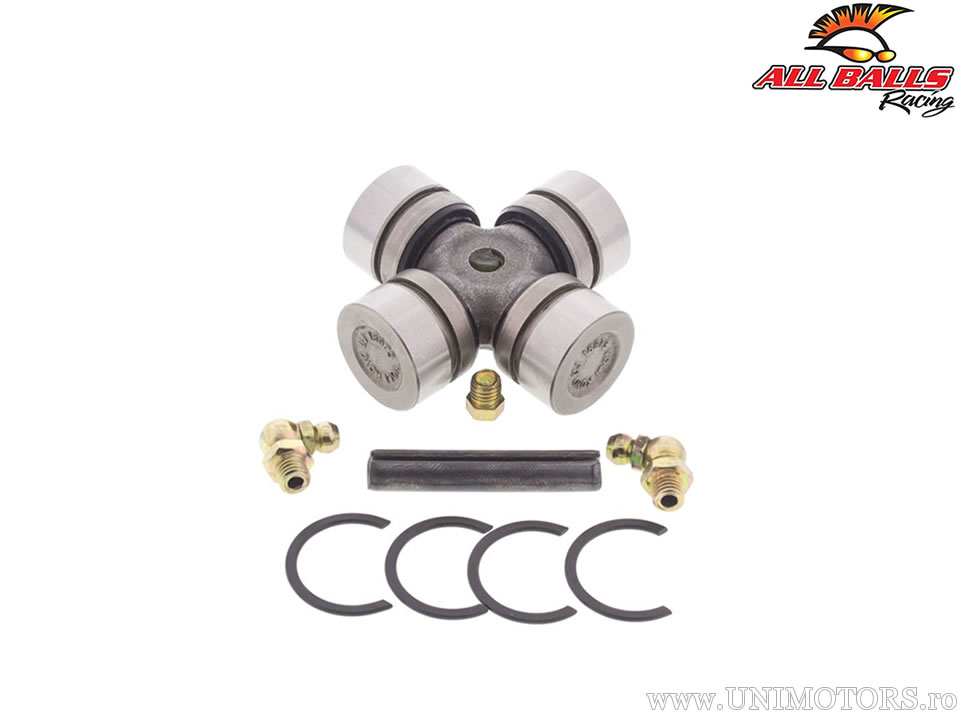

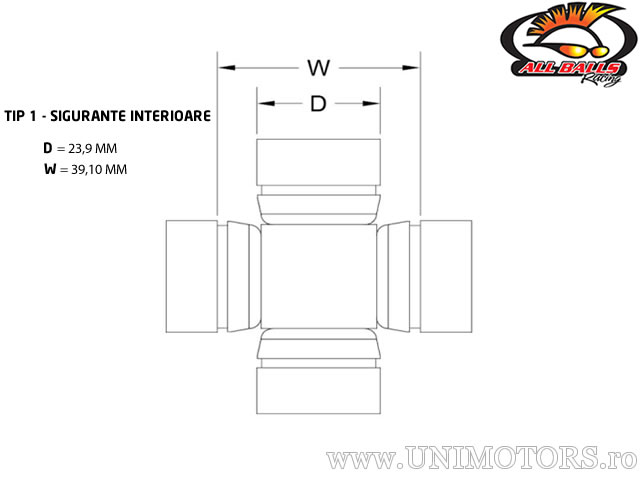

Cardan joint from All Balls - front planetary mounting part - to differential (inner) (pos. 1 in image no. 3) with dimensions 23.9 x 39.10 mm type 1 - internal snap rings.
The manufacturer All Balls is a supplier of consumables and parts for motorcycles and ATVs with an excellent proven quality/price ratio. The cardan joints from All Balls are made from SCM-415 cold forged steel and are factory greased with high-temperature resistant Lithium Complex 3 grease.

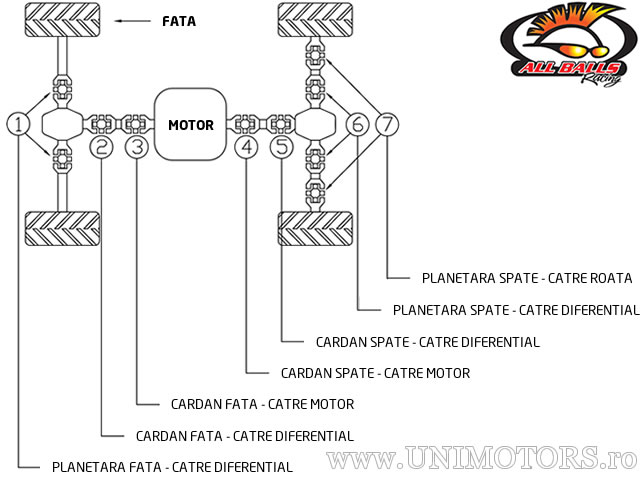

Note for 6x6 traction vehicles:
- the middle driveshaft uses the same cardan joints as those of the rear driveshaft (pos. 4 and 5 - image 3)
- the middle planetary gears use the same cardan joints as those of the rear planetary gears (pos. 6 and 7 - image 3)
Among the most important applications are: Polaris Big Boss 400L 6x6 (1995-1996) / Diesel 455 4x4 (2001) / Magnum 400L 6x6 96 / Magnum 425 4x4 (1995-1997) / Scrambler 400 4x4 (1995-1996) / Sportsman 400 4x4 (1995-1996) / Sportsman 500 4x4 96 / Xplorer 400L 4x4 (1995-1997).
Complete application list can be found below.
