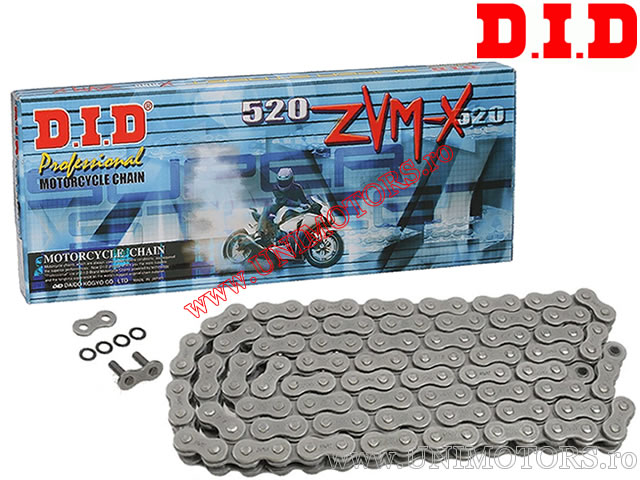

Chain transmission DID X-Ring - 520ZVM-X (black / black) - 116 links - DID

Lant transmisie DID X-Ring 520ZVM-X (black / black) - 116 links.

The DID 520ZVM-X chains are manufactured in Japan and each pin is protected from moisture and dirt by an X-Ring. The main difference between X-Ring and O-Ring is that the former has two contact and sealing areas, while chains with O-Ring technology have only one contact point. As a successor to the high-performance DID ZVM2 model, the ZVM-X model has been given special attention to the loads that occur in the transmission system during everyday use, it has a lower weight compared to ZVM2, increased tensile strength, and very high wear resistance.

Specifications:
- pitch 520 (5/8 x 1/4)
- internal self-lubrication
- maximum efficiency
- high lifespan
- open chain - includes link with closing pin
- tensile strength (kg): 3970 kg
- color: black / black
- length: 116 links

Note: the applications of this chain (number of links - 116) are for the factory ratio (standard). We recommend checking the length on the vehicle before ordering. If a different number of links is required, use this product and select the corresponding number of links: DID 520ZVM-X X-Ring chain (black / black) - link count selection.

Among the most important applications are: Honda CBR 1000 RR Fireblade (2008-2018) / CBR 1000 S Fireblade SP (2014-2016) / Suzuki GSX-R 750 (2006-2018) / Triumph Daytona 675 (2006-2012) / Yamaha YZF-R1 1000 (2004-2005) / YZF-R6 600 (1999-2005).

Complete application list can be found below.
