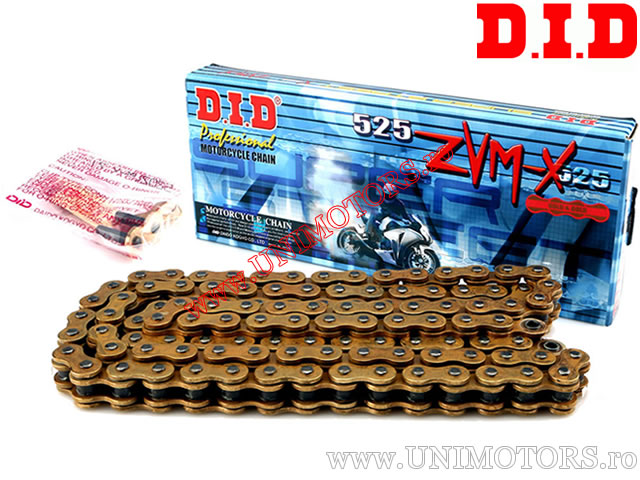

Chain transmission DID X-Ring - 525ZVM-X (gold / gold) - 120 links - DID

Lant transmisie DID X-Ring 525ZVM-X (gold / gold) - 120 links.

The DID 525ZVM-X chains are manufactured in Japan and each link is protected from moisture and dirt by an X-Ring. The main difference between X-Ring and O-Ring is that the former has two contact and sealing areas, while chains with O-Ring technology have only one contact point. As a successor to the high-performance DID ZVM2 model, the ZVM-X model has been given special attention to the loads that occur in the transmission system during everyday use, it has a lower weight compared to ZVM2, increased tensile strength, and very high wear resistance.

Specifications:
- pitch 520 (5/8 x 5/16)
- internal self-lubrication
- maximum efficiency
- high lifespan
- open chain - contains a link with a closing pin
- tensile strength (kg): 4720 kg
- color: gold / gold
- length: 120 links

Note: the applications of this chain (number of links - 120) are for the factory (standard) ratio. We recommend checking the length on the vehicle before ordering. If a different number of links is required, use this product and select the corresponding number of links: DID 525ZVM-X X-Ring chain (gold / gold) - link count selection.

Among the most important applications are: BMW S 1000 RR ABS (2014-2018) / S 1000 R ABS (2013-2018) / Suzuki GSX-R 1000 A ABS / GSX-R 1000 RA ABS / GSX-R 1000 RZA ABS (2017-2018).

Complete application list can be found below.
