Charging Relay - Honda VT 1100 C Shadow / VT 1100 C2 Shadow ('87-'03) / VT 1100 C3 Shadow ('98-'02) - DZE

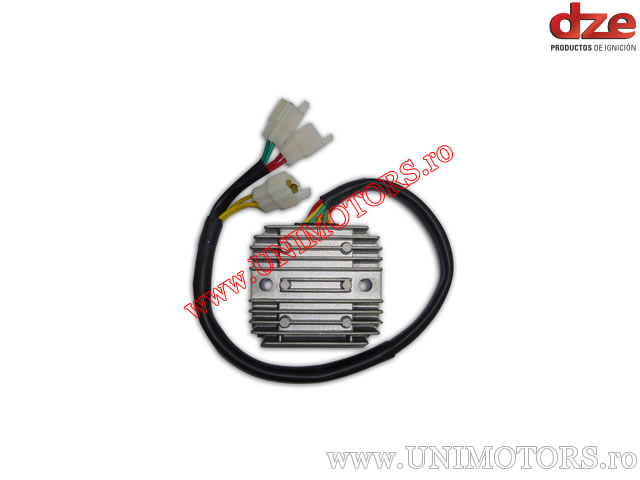

Charging relay (voltage regulator) from DZE Argentina equivalent to Shindengen SH541G-11 for Honda VT C Shadow 1100 (2001-2003) / VT C Shadow 1100 (1995-1997) / VT C Shadow 1100 (1997-1998) / VT C2 Shadow 1100 (1997-1999) / VT C Shadow 1100 (1987-1994) / VT C3 Shadow 1100 (2001-2002) / VT C Shadow 1100 (1987-1994) / VT C2 Shadow 1100 (2000-2003) / VT T Shadow 1100 (1998-2000) / VT C2 Shadow 1100 (1995-1997) / VT C3 Shadow 1100 (1998-2000).

OEM part reference: 31600-MCK-A01 / 31600-MAH-008 / 31600-MAA-A01 / 31600-MM8-008 / 31600-MAA-000 / 31600-MAA-A10.

Technical specifications
- voltage: 12 V
- power: 35 A
- input current: three-phase
- technology: SCR
- output type: direct current (D.C.)
- height: 28 mm
- width: 80 mm
- length: 90 mm
- hole spacing: 67 mm
- with sensor: no
