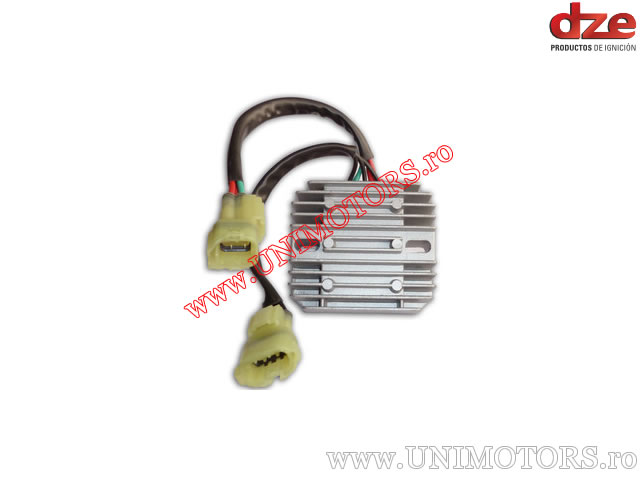

Charging Relay - Suzuki LT-A Quad Master 500 ('00-'01) / LT-F Quad Runner 500 ('98-'02) - DZE

Charging relay (voltage regulator) from DZE Argentina for Suzuki LT-A Quad Master - Y Model 500 (2000-2001) / LT-F Quad Runner - Y Model 500 (1998-2002).

OEM part reference: 32800-44D20 / 32800-44D21 / 3280044D20 / 3280044D21.

Technical specifications
- voltage: 12 V
- power: 35 A
- input current: three-phase
- technology: SCR
- output type: direct current (D.C.)
- height: 28 mm
- width: 80 mm
- length: 90 mm
- hole spacing: 70 mm
- with sensor: no
