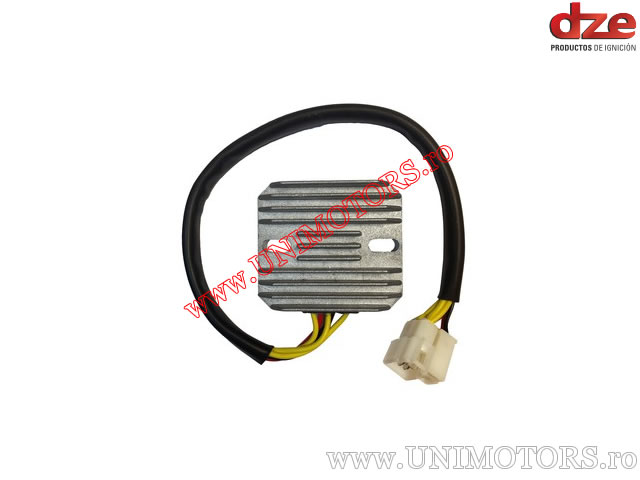

Charging relay (voltage regulator) from DZE Argentina equivalent to Shindengen SH535C-12 for Suzuki VX 800 (1990-1993) / VZ Marauder 800 (1997-2004).
OEM part reference: 32800-45C00 / 32800-45C01 / 3280045C00 / 3280045C01.
Technical specifications
- voltage: 12 V
- power: 35 A
- input current: three-phase
- technology: SCR
- output type: direct current (D.C.)
- height: 28 mm
- width: 70 mm
- length: 80 mm
- hole spacing: 60 mm
- with sensor: no
