Charging Relay (Voltage Regulator) Universal - 12V 50A (5 wires - Mosfet technology) - DZE

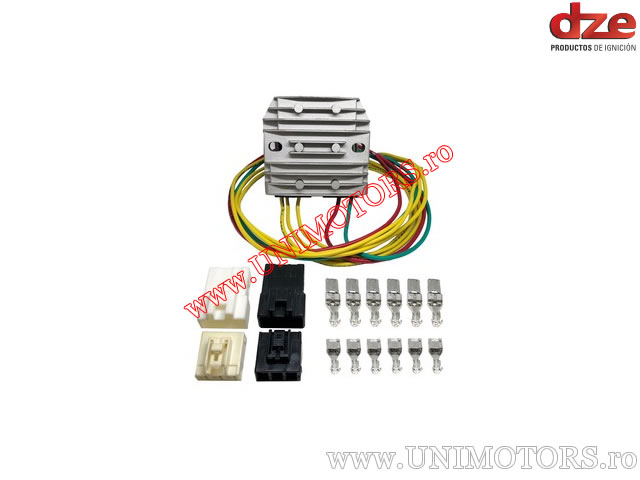

Charging relay (voltage regulator) from DZE Argentina adaptable, with 5 wires, based on Mosfet technology for a 12V electrical system and a maximum current of 50A. It comes with the plugs and connectors shown in the image.

Technical specifications
- voltage: 12 V
- power: 50 A
- input current: three-phase

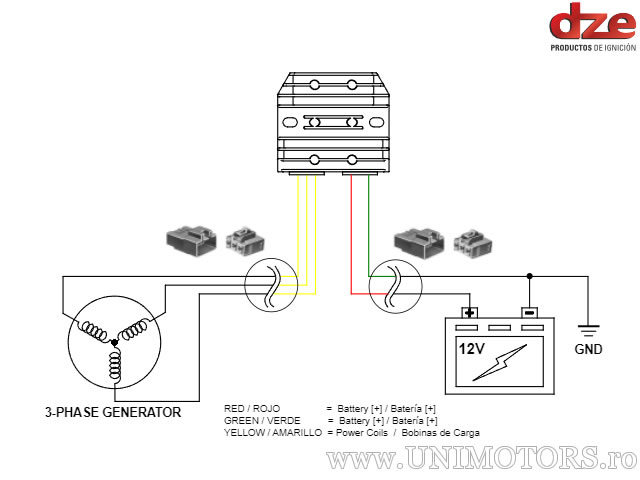

- number of wires: 5 - (1 x red / 1 x green / 3 x yellow)
- technology: MOSFET
- output type: direct current (D.C.)
- height: 28 mm
- width: 80 mm
- length: 90 mm
- hole spacing: 70 mm
- with sensor: no
