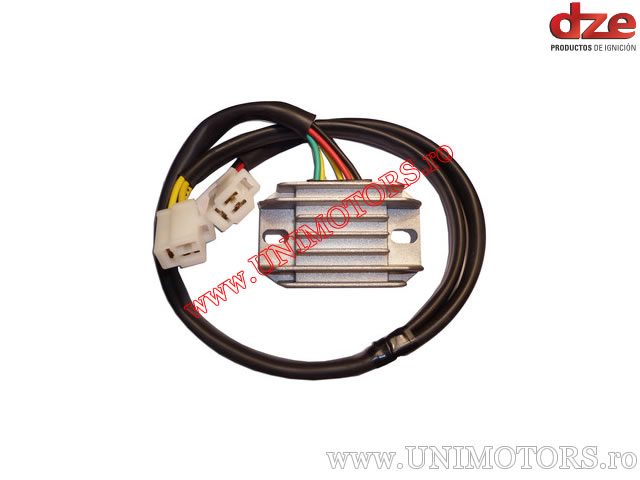

Charging relay (voltage regulator) from DZE Argentina equivalent to Pietcard 1182 for Honda NX 250 (1988-1993).
OEM part reference: 31600-KW3-000 / 31600-KW3-010.
Technical specifications
- voltage: 12 V
- power: 20 A
- input current: three-phase
- technology: SCR
- output type: direct current (D.C.)
- height: 28 mm
- width: 47 mm
- length: 76 mm
- hole spacing: 60 mm
- with sensor: yes.
