Clutch Slave Cylinder Hymec, Stroke Length 47mm - Magura

Cylinder clutch receiver Hymec stroke length 47mm from the manufacturer Magura.

Product description:
- clutch receiver cylinder;

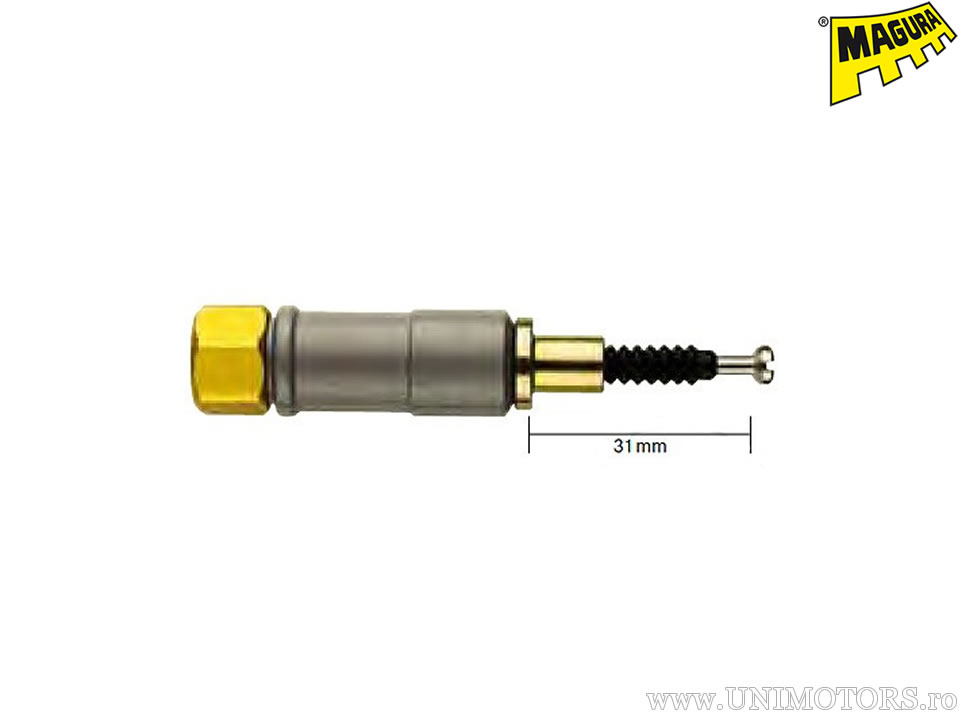

- measured length: 31mm (see diagram);
- operating length: 46mm to 48mm;
- if you want to replace an older HYMEC clutch cylinder you need the part number for the replacement;
- we have developed a method for finding the replacement part number:
- remove the clutch cylinder from the motorcycle and operate the pump until the piston reaches the end of the stroke;
- measure the length of the rod;
- this length is 16mm shorter than the stroke of the cylinder;
- all MAGURA HYMEC clutch cylinders come with a standard cap and standard mount as shown in the images;
- if you need the clutch cylinder between two operating lengths always order the longer version.
