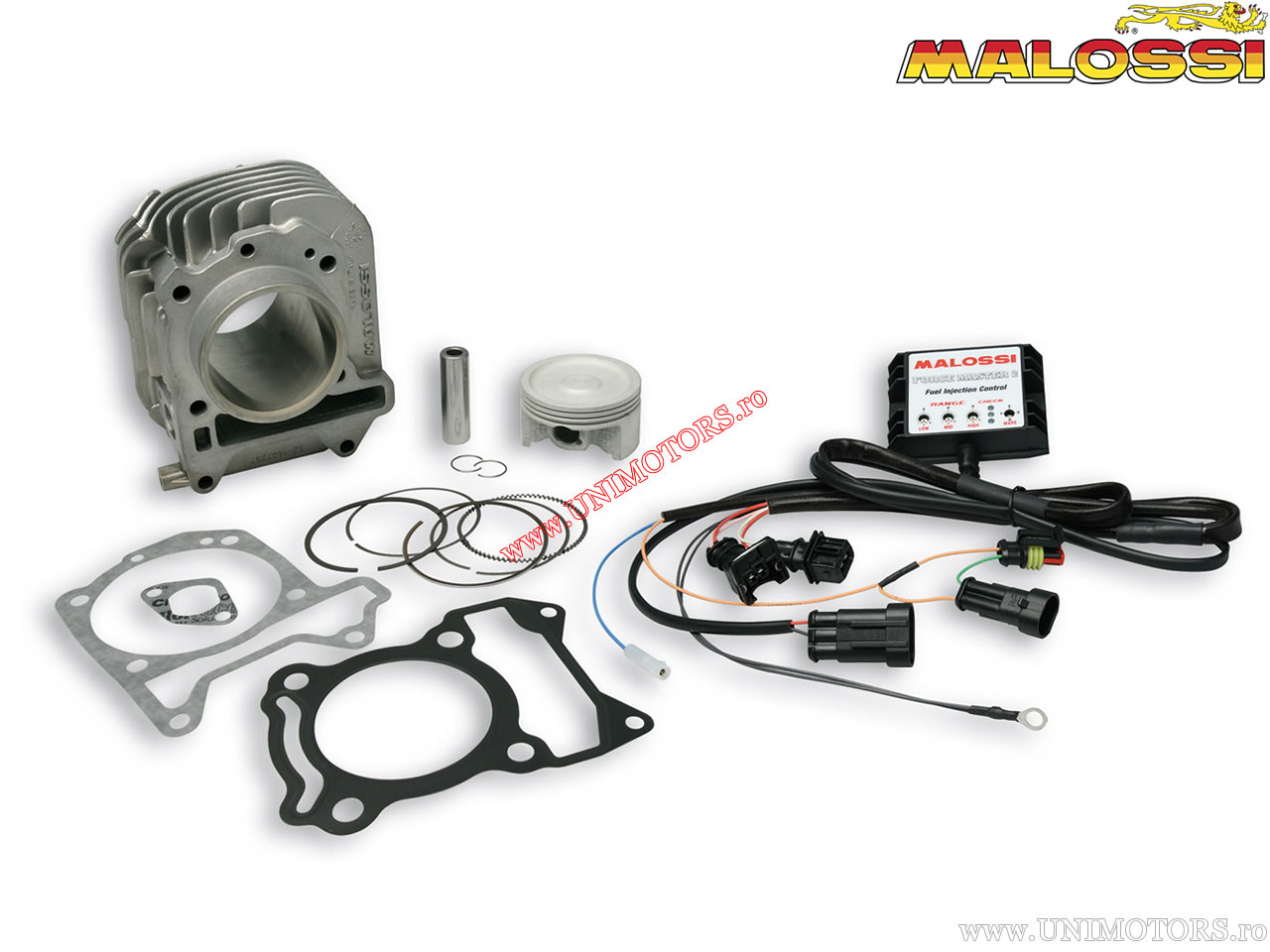

Complete aluminum cylinder I-Tech 4T (diameter 63mm / 182.70cc) - Piaggio Fly II 150i Air 4T 3V E3 ('13-'18) - Malossi

Cylinder complete aluminum I-Tech 4T (63mm) Malossi. Among the most important applications are: Piaggio Fly II 150i AIR 4T 3V E3 2013-2018 / Fly II DT 125i AIR 4T 3V E3 2013-2015 / Fly II LEM 125i AIR 4T 3V E3 2012-2014 / Liberty 125i LEM AIR 4T 3V E3 2013-2015 / Liberty 150i LEM AIR 4T 3V E3 2013-2014 / Vespa 946 125i AIR 4T 3V E3 2013-2015 / 946 125i AIR 4T 3V E4 2016-2020 / GTS Super 125i AIR 4T 3V E3 2013-2017 / GTS Super 150i AIR 4T 3V E3 2014-2017 / LT 125i AIR 4T 3V E3 2013-2016 / LT 150i AIR 4T 3V E3 2014 / LX 125i AIR 4T 3V E3 2012-2014 / LX 150i AIR 4T 3V E3 2012-2014 / Primavera 125i AIR 4T 3V E3 2013-2017 / Primavera 150i AIR 4T 3V E3 2013-2016 / S 125i AIR 4T 3V E3 2012-2017.

Note: ONLY for vehicles with integrated CDI in the throttle body.

- Cylinder for air-cooled engine;
- Material made from high-silicon primary aluminum alloy;
- Cylindrical sleeve with silicon carbide coating;
- Machined on high-precision CNC machines;
- Cylinder-piston connection with a clearance of 0.05 mm;
- Heat exchange surfaces recalculated and modernized;
- Ultra compact piston with 3 rings;
- Piston made from special high-silicon aluminum alloy;
- Machined on CNC machines;
- Improved heat exchange surfaces;
- Piston rings: compression ring (nitrided steel), special ring (cast iron) and oil control ring made of 3 pieces - steel;
- CDI Force Master;
- Carburation adjustment: ± 20% at min / medium / max;
- RPM limiter: + 1000 RPM (only for Code 3116669);
- Four different maps:
- Curve 0 - 125cc with Malossi kit Ø 63 + original exhaust system;
- Curve 1 - 125cc with Malossi kit Ø 63 + Malossi exhaust system with DB killer;
- Curve 2 - 150cc with Malossi kit Ø 63 + original exhaust system;
- Curve 3 - 150cc with Malossi kit Ø 63 + Malossi exhaust system with DB killer;
- Does not include cylinder head;
- Bore: 63 mm;
- Piston pin diameter: 14 mm;
- Stroke: 58.6 mm;
- Class: Sport.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
