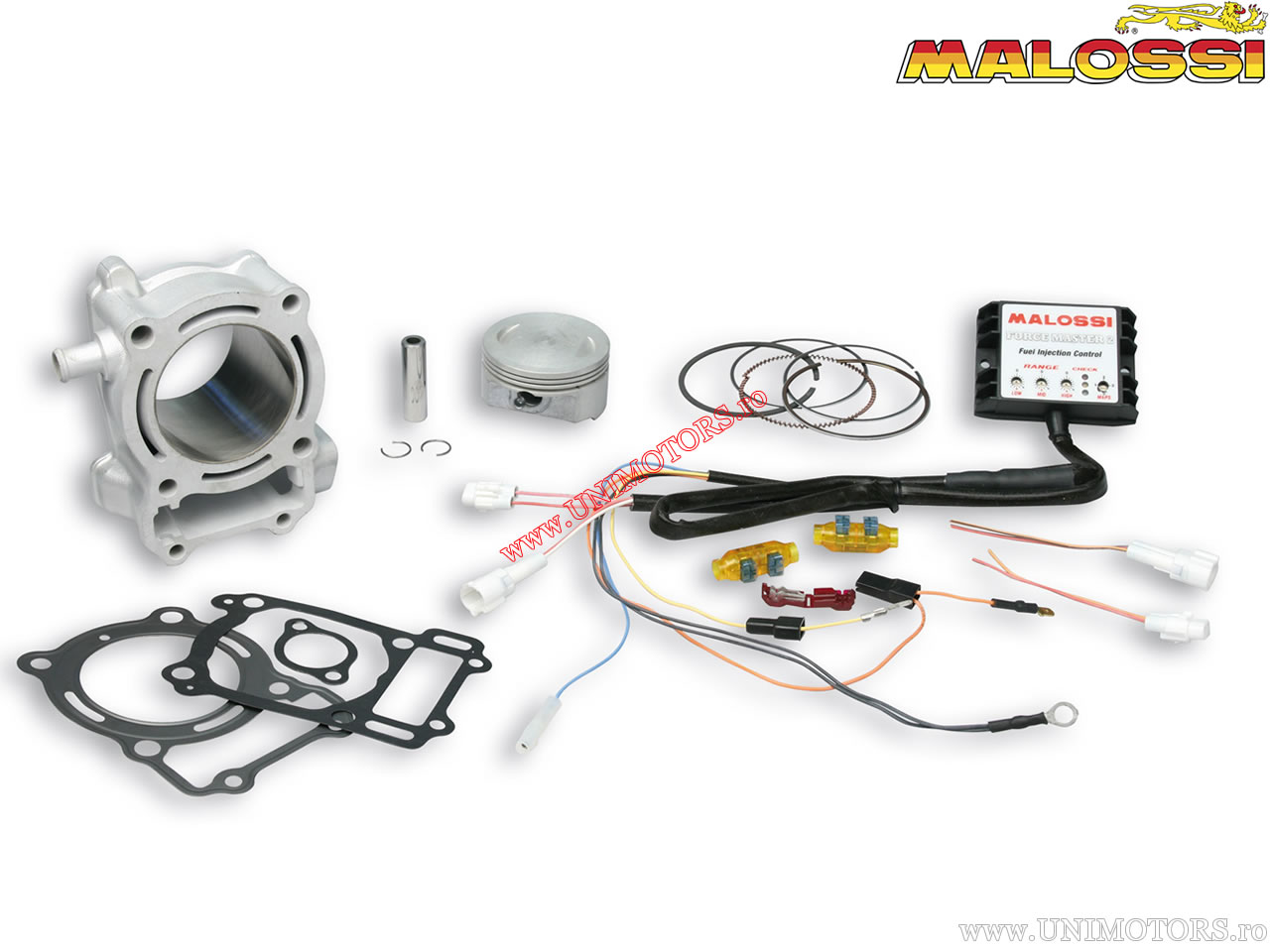

Cylinder complete aluminum I-Tech 4T (67mm) Malossi. Among the most important applications are: Honda CBR 125i H2O 4T E3 (2007-2010) / CBR 125i H2O 4T E3 (2011-2016).
- Cylinder for liquid-cooled engine;
- Material made from high-silicon primary aluminum alloy;
- Cylindrical sleeve with silicon carbide coating;
- Machined on high-precision CNC machines;
- Cylinder-piston connection with an intake of 0.05 mm;
- Heat exchange surfaces recalculated and modernized;
- Ultra compact piston with 3 rings;
- Piston made from special high-silicon aluminum alloy;
- Machined on CNC machines;
- Improved heat exchange surfaces;
- Piston rings: compression ring (nitrided steel), special ring (cast iron T), and 3-piece oil control ring - steel;
- CDI Force Master;
- Carburetion adjustment: ± 20% at min / medium / max;
- RPM limiter: + 1000 RPM;
- Four different maps:
- Map 0: Malossi exhaust system with DB killer, original camshaft;
- Map 1: Malossi cylinder, original exhaust system, original camshaft;
- Map 2: Malossi cylinder, Malossi exhaust system with DB killer, original camshaft;
- Map 3: Malossi cylinder, Malossi exhaust system without DB killer, original camshaft;
- Does not include cylinder head;
- Bore: 67 mm;
- Piston pin diameter: 13 mm;
- Stroke: 47.2 mm;
- Class: Sport.
Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
