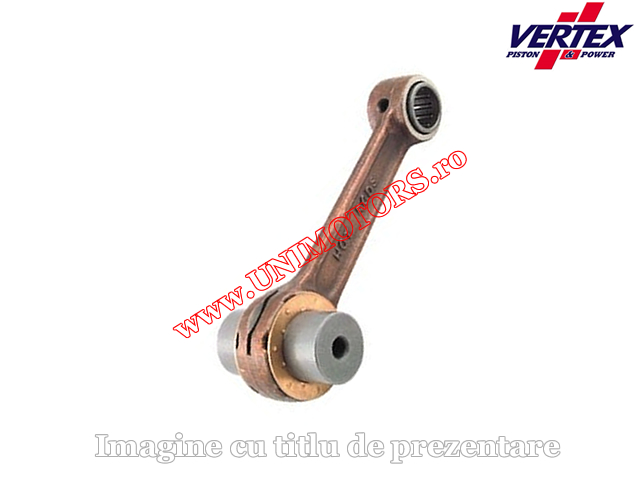

Vertex connecting rod kit for Honda CR250 / CR250R manufactured between 1984-2001.
DIMENSIONS:
Base bearing (mm): 24x31x17
Base diameter (mm): 31.00
Base width (mm): 16.90
Length (center to center) (mm): 125.40
Pin diameter (mm): 24.00
Pin length (mm): 59.50
Upper bearing (mm): 18x22x22
Upper diameter (mm): 22.00
Upper width (mm): 19.90
Washer thickness (mm): 0.85 / 1.25
