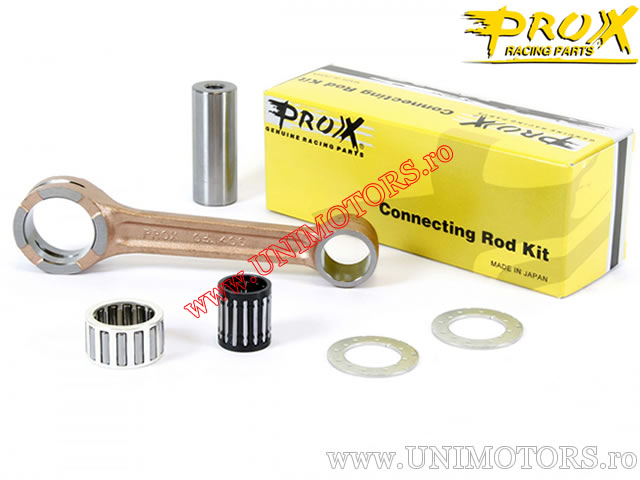

ProX connecting rod kit for Honda CR 500 (1987-2001).
Dimensions:
- dimension A - upper diameter: 25.00 mm
- dimension B - lower diameter: 35.00 mm
- dimension C - distance between bolt centers: 144.00 mm
- dimension D - upper width: 24.00 mm
- dimension E - lower width: 20.00 mm
- dimension F - total length: 183.00 mm
- dimension G - inner length: 114.00 mm
- dimension H - lower bolt diameter: 26.00 mm
- dimension I - lower bolt length: 67.75 mm
- washers: 26x42x1.50 mm
Made in Japan.
