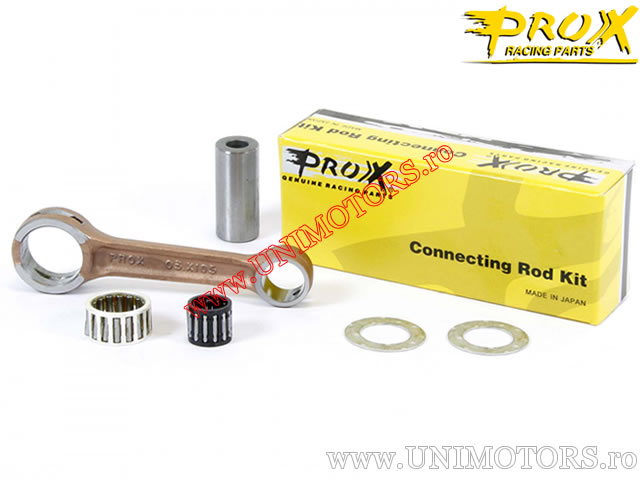

ProX connecting rod kit for Honda CR 80 (1986-2002) / CR 85 (2003-2007).

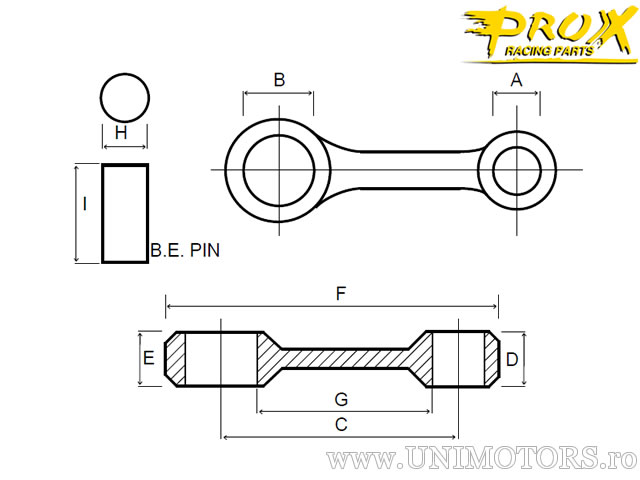

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 26.00 mm
- dimension C - distance between bolt centers: 97.00 mm
- dimension D - upper width: 14.15 mm
- dimension E - lower width: 14.15 mm
- dimension F - total length: 126.25 mm
- dimension G - inner length: 75.00 mm
- dimension H - lower bolt diameter: 20.00 mm
- dimension I - lower bolt length: 45.00 mm
- washers: 20x33x1.00 mm
Made in Japan.
