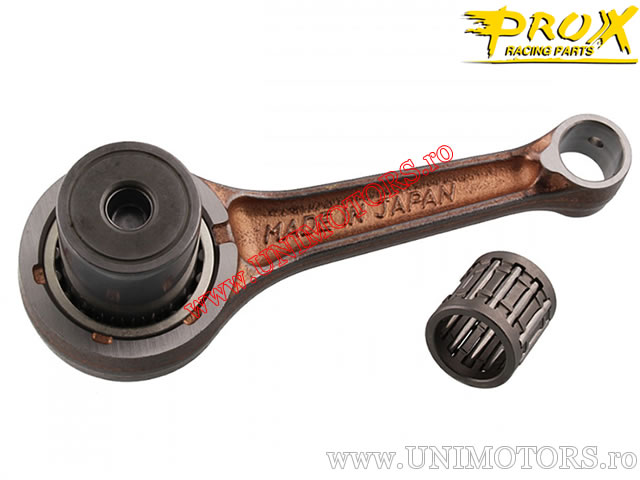

Connecting Rod Kit - Honda CRF 230 F ('03-'19) - ProX

ProX connecting rod kit for Honda CRF 230 F (2003-2019).

Dimensions:
- dimension A - upper diameter: 15.00 mm
- dimension B - lower diameter: 38.00 mm
- dimension C - distance between bolt centers: 110.00 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 18.00 mm
- dimension F - total length: 145.20 mm
- dimension G - inner length: 83.50 mm
- dimension H - lower bolt diameter: 30.00 mm
- dimension I - lower bolt length: 54.00 mm
- washers: none

Made in Japan.
