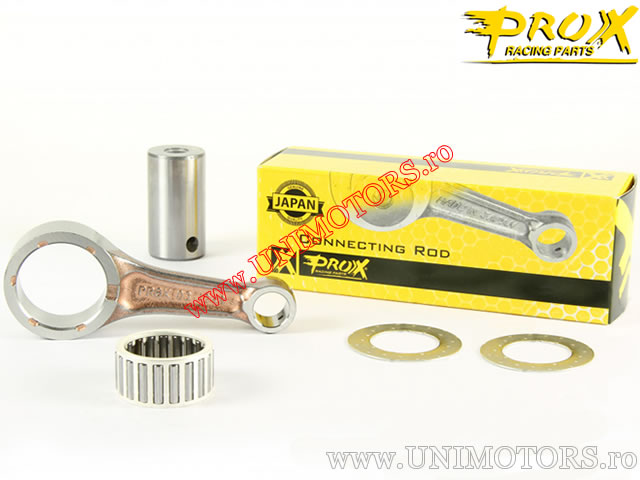

Connecting Rod Kit - Honda CRF 250 R ('18-'20) / CRF 250 RX ('19-'20) - ProX

ProX connecting rod kit for Honda CRF 250 RX (2019-2020) / CRF 250 R (2018-2020).

Dimensions:
- dimension A - upper diameter: 16.00 mm
- dimension B - lower diameter: 38.00 mm
- dimension C - distance between bolt centers: 91.50 mm
- dimension D - upper width: 16.00 mm
- dimension E - lower width: 19.80 mm
- dimension F - total length: 127.25 mm
- dimension G - inner length: 64.50 mm
- dimension H - lower bolt diameter: 30.00 mm
- dimension I - lower bolt length: 54.90 mm
- washers: 30x50x1.00 mm

Made in Japan.
