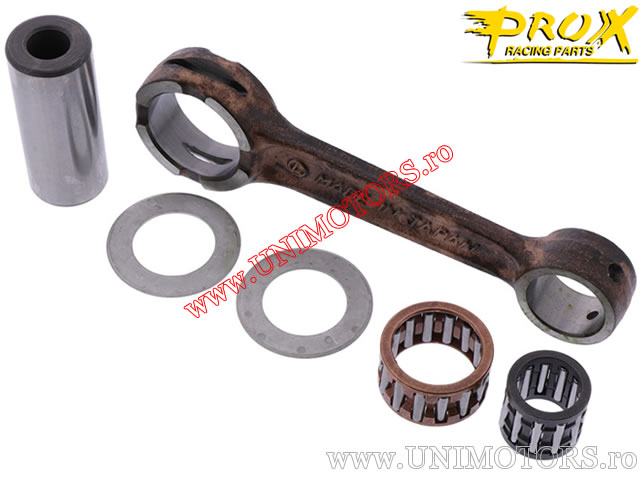

Connecting Rod Kit - Honda MB 80 S / MT 80 S - ProX

ProX connecting rod kit for Honda MB 80 S / MT 80 S.

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 26.00 mm
- dimension C - distance between bolt centers: 100.00 mm
- dimension D - upper width: 14.00 mm
- dimension E - lower width: 14.00 mm
- dimension F - total length: 130.35 mm
- dimension G - inner length: 77.50 mm
- dimension H - lower bolt diameter: 20.00 mm
- dimension I - lower bolt length: 48.00 mm
- washers: 20x33x1.00 mm

Made in Japan.
