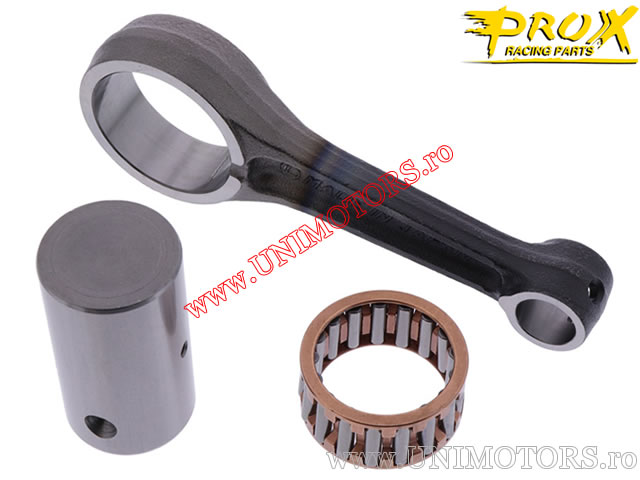

Connecting Rod Kit Honda XL 125 / XR 200 / XR 200 R - (ProX)

ProX connecting rod kit for Honda XL 125 / XR 200 / XR 200 R.

Dimensions:
- dimension A - upper diameter: 15.00 mm
- dimension B - lower diameter: 38.00 mm
- dimension C - distance between bolt centers: 103.50 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 18.00 mm
- dimension F - total length: 139.00 mm
- dimension G - inner length: 77.00 mm
- dimension H - lower bolt diameter: 30.00 mm
- dimension I - lower bolt length: 54.00 mm
- washers: 30x46x1.00 mm

Made in Japan.
