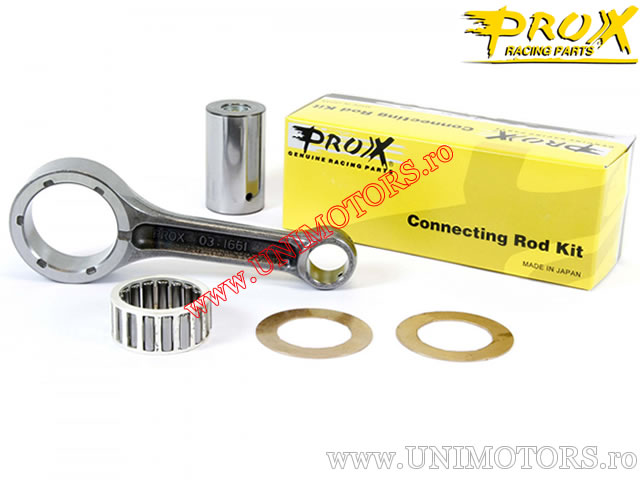

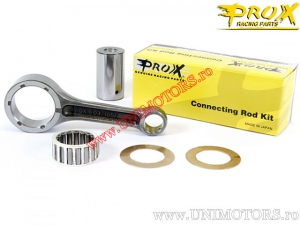

ProX connecting rod kit for Honda XR 650 R (2000-2007).
Dimensions:
- dimension A - upper diameter: 23.00 mm
- dimension B - lower diameter: 50.00 mm
- dimension C - distance between bolt centers: 140.25 mm
- dimension D - upper width: 23.00 mm
- dimension E - lower width: 23.00 mm
- dimension F - total length: 103.75 mm
- dimension G - inner length: 190.00 mm
- dimension H - lower bolt diameter: 38.00 mm
- dimension I - lower bolt length: 65.00 mm
- washers: 38x60x1.00 mm
Made in Japan.
