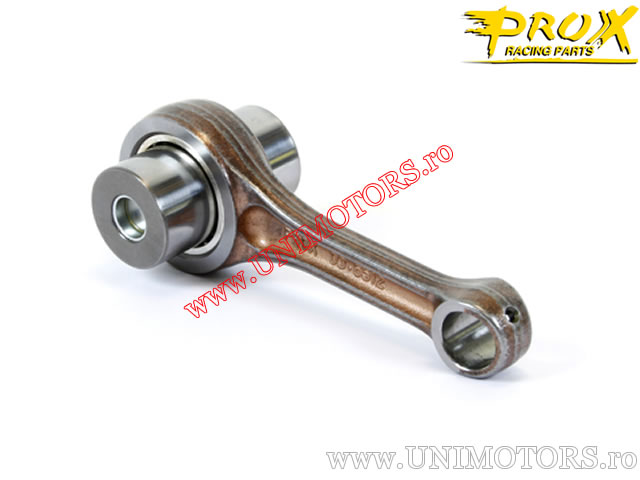

Connecting Rod Kit - KTM EXC 500 ('12-'13) / Husaberg FE 501 ('13) - ProX

ProX connecting rod kit for KTM EXC 500 (2012-2013) / Husaberg FE 501 (2013).

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 42.00 mm
- dimension C - distance between bolt centers: 122.40 mm
- dimension D - upper width: 19.90 mm
- dimension E - lower width: 19.90 mm
- dimension F - total length: 163.15 mm
- dimension G - inner length: 91.90 mm
- dimension H - lower bolt diameter: 35.00 mm
- dimension I - lower bolt length: 62.70 mm
- washers: none

Made in Japan.
