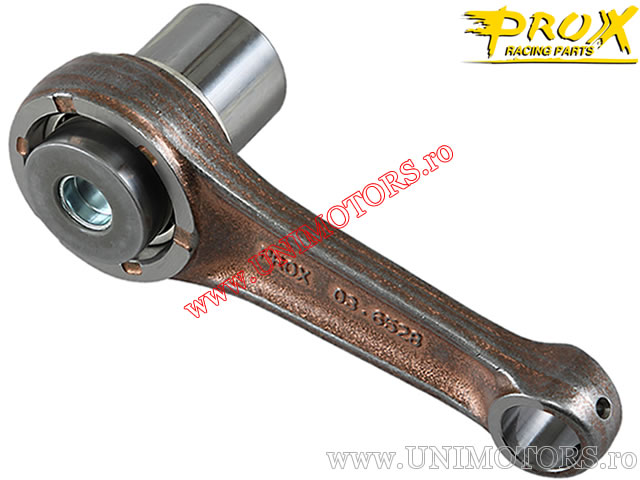

Connecting Rod Kit - KTM EXC-R 530 ('08-'11) - ProX

ProX connecting rod kit for KTM EXC-R 530 (2008-2011).

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 42.00 mm
- dimension C - distance between bolt centers: 120.80 mm
- dimension D - upper width: 19.90 mm
- dimension E - lower width: 19.90 mm
- dimension F - total length: 162.40 mm
- dimension G - inner length: 90.30 mm
- dimension H - lower bolt diameter: 35.00 mm
- dimension I - lower bolt length: 62.70 mm
- washers: none

Made in Japan.
