Connecting Rod Kit - KTM SX 50 ('01-'20) / Husqvarna TC 50 ('17-'20) - ProX

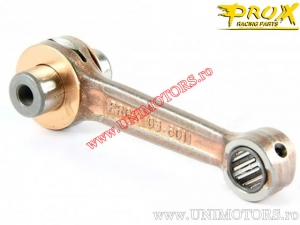

ProX connecting rod kit for KTM SX 50 (2001-2020) / Husqvarna TC 50 (2017-2020).

Dimensions:
- dimension A - upper diameter: 15.00 mm
- dimension B - lower diameter: 22.00 mm
- dimension C - distance between bolt centers: 85.00 mm
- dimension D - upper width: 14.00 mm
- dimension E - lower width:
- dimension F - total length: 110.90 mm
- dimension G - inner length: 66.50 mm
- dimension H - lower bolt diameter: 16.00 mm
- dimension I - lower bolt length: 35.90 mm
- washers: 16x30 mm

Made in Japan.
