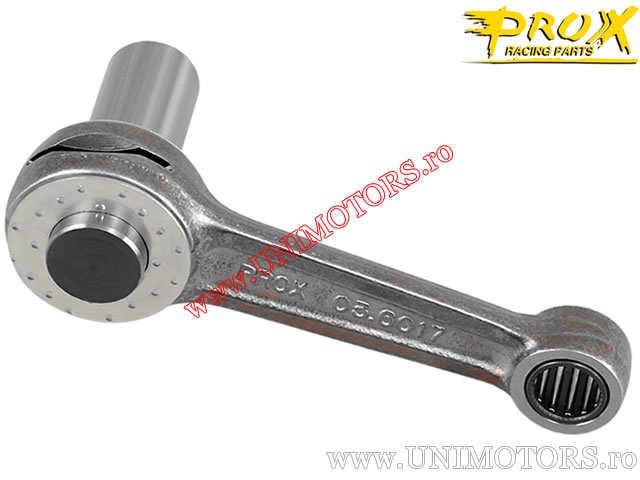

ProX connecting rod kit for KTM SX 60 (1997-1999) / SX 65 (2000-2002).

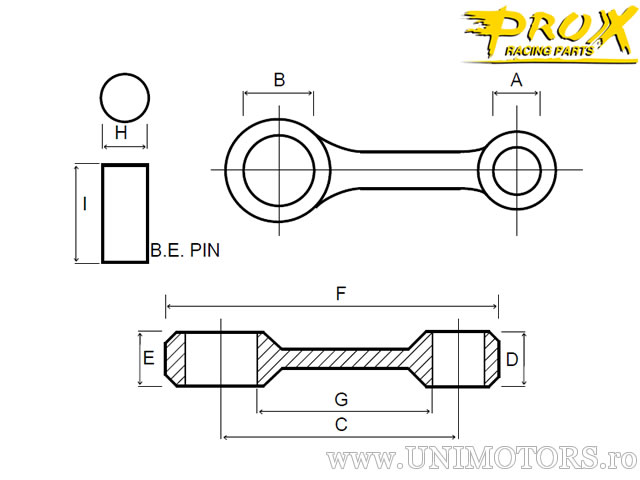

Dimensions:
- dimension A - upper diameter: 15.00 mm
- dimension B - lower diameter: 24.00 mm
- dimension C - distance between bolt centers: 88.00 mm
- dimension D - upper width: 12.90 mm
- dimension E - lower width: 14.90 mm
- dimension F - total length: 116.70 mm
- dimension G - inner length: 68.50 mm
- dimension H - lower bolt diameter: 18.00 mm
- dimension I - lower bolt length: 56.00 mm
- washers: 18x33x1.00 mm
Made in Japan.
