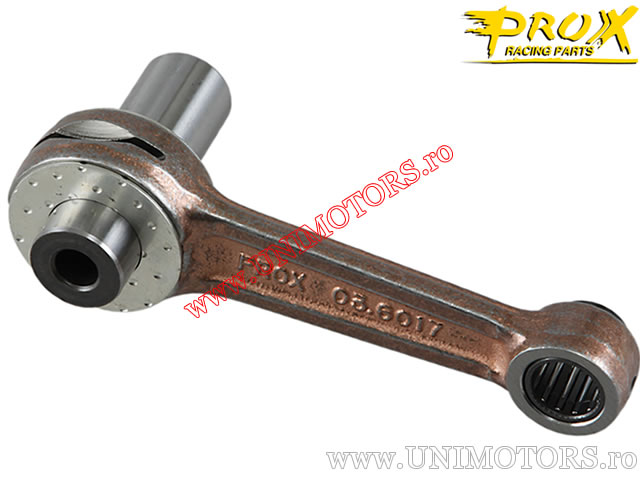

ProX connecting rod kit for KTM SX 65 (2009-2020) / Husqvarna TC 65 (2017-2020).
Dimensions:
- dimension A - upper diameter: 15.00 mm
- dimension B - lower diameter: 24.00 mm
- dimension C - distance between bolt centers: 88.00 mm
- dimension D - upper width: 12.90 mm
- dimension E - lower width: 14.90 mm
- dimension F - total length: 116.70 mm
- dimension G - inner length: 68.50 mm
- dimension H - lower bolt diameter: 18.00 mm
- dimension I - lower bolt length: 54.30 mm
- washers: 18x33x1.00 mm
Made in Japan.
