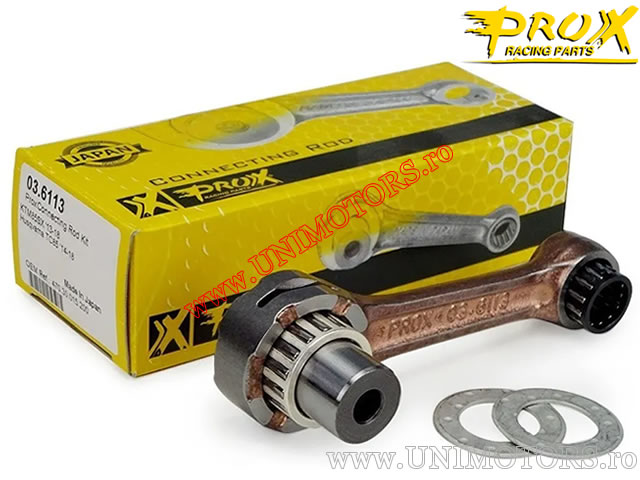

Connecting Rod Kit - KTM SX 85 ('13-'20) / Husqvarna TC 85 ('14-'20) - ProX

ProX connecting rod kit for KTM SX 85 (2013-2020) / Husqvarna TC 85 (2014-2020).

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 26.00 mm
- dimension C - distance between bolt centers: 96.00 mm
- dimension D - upper width: 14.00 mm
- dimension E - lower width: 14.95 mm
- dimension F - total length: 126.10 mm
- dimension G - inner length: 74.00 mm
- dimension H - lower bolt diameter: 20.00 mm
- dimension I - lower bolt length: 45.90 mm
- washers: 22x33x1.00 mm

Made in Japan.
