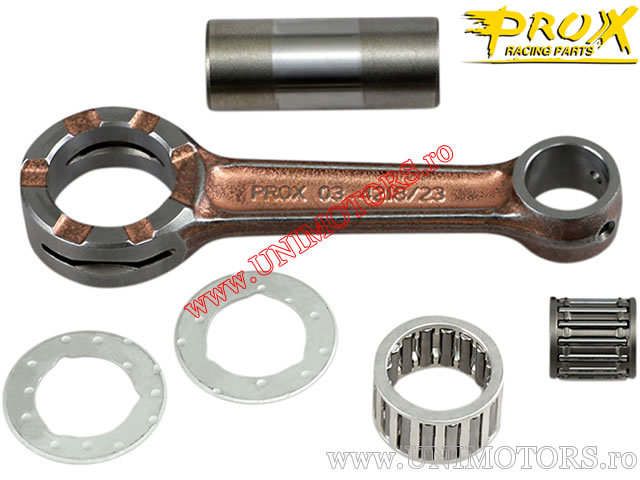

Connecting Rod Kit - Kawasaki KX 125 ('03-'08) - ProX

ProX connecting rod kit for Kawasaki KX 125 (2003-2008).

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 29.00 mm
- dimension C - distance between bolt centers: 104.00 mm
- dimension D - upper width: 17.00 mm
- dimension E - lower width: 17.00 mm
- dimension F - total length: 137.00 mm
- dimension G - inner length: 80.00 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 55.00 mm
- washers: 22x42x1.00 mm

Made in Japan.
