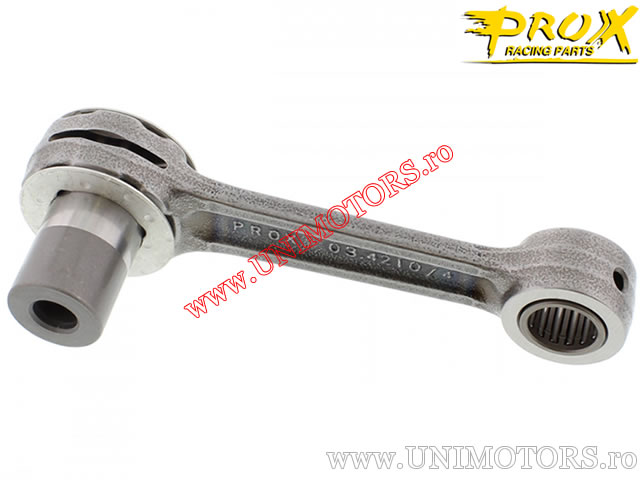

ProX connecting rod kit for Kawasaki KX 125 (1994-1997).

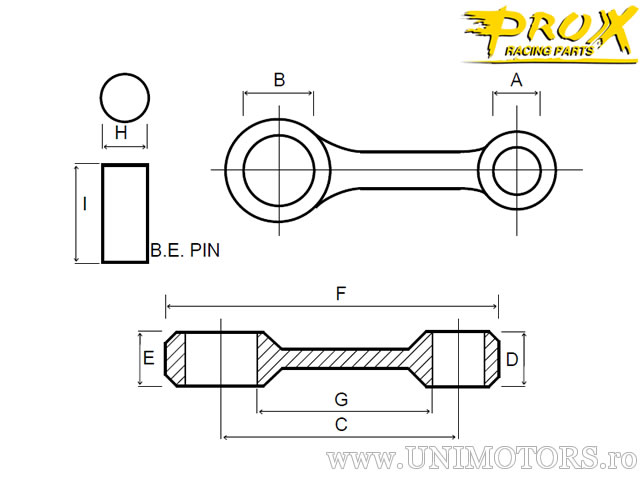

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 29.00 mm
- dimension C - distance between bolt centers: 106.00 mm
- dimension D - upper width: 17.00 mm
- dimension E - lower width: 17.00 mm
- dimension F - total length: 140.00 mm
- dimension G - inner length: 82.00 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 51.00 mm
- washers: 22x37x1.00 mm
Made in Japan.
