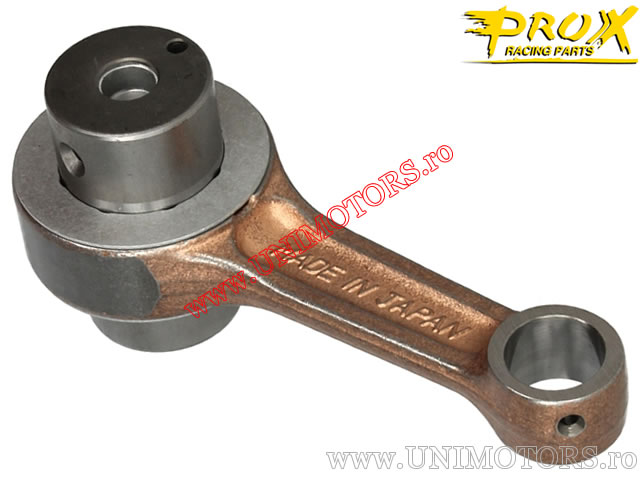

ProX connecting rod kit for Kawasaki KX 450 F (2009-2018).

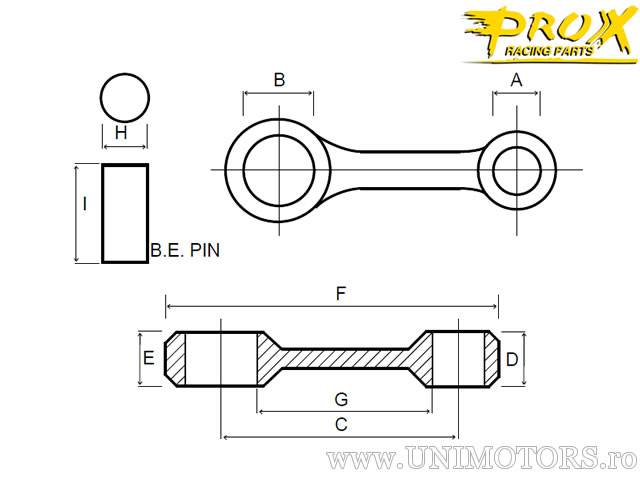

Dimensions:
- dimension A - upper diameter: 19.00 mm
- dimension B - lower diameter: 42.00 mm
- dimension C - distance between bolt centers: 101.00 mm
- dimension D - upper width: 18.00 mm
- dimension E - lower width: 22.00 mm
- dimension F - total length: 142.30 mm
- dimension G - inner length: 70.50 mm
- dimension H - lower bolt diameter: 34.00 mm
- dimension I - lower bolt length: 62.00 mm
- washers: none
Made in Japan.
