Connecting Rod Kit - Kawasaki KX 80 ('82-'97) - ProX

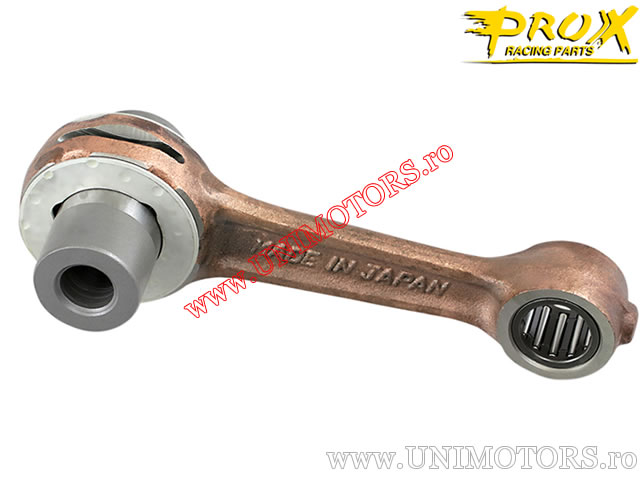

ProX connecting rod kit for Kawasaki KX 80 (1982-1997).

Dimensions:
- dimension A - upper diameter: 18.00 mm
- dimension B - lower diameter: 29.00 mm
- dimension C - distance between bolt centers: 92.00 mm
- dimension D - upper width: 16.00 mm
- dimension E - lower width: 14.00 mm
- dimension F - total length: 126.50 mm
- dimension G - inner length: 68.50 mm
- dimension H - lower bolt diameter: 22.00 mm
- dimension I - lower bolt length: 46.00 mm
- washers: 22x37x1.00 mm

Made in Japan.
